30. Induction and Inductance

Lenz's Law

Physics

30. Induction and Inductance

Lenz's Law

Previous problemNext problem

2:10 minutes

Problem 7

Textbook Question

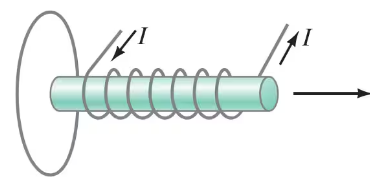

(II) If the solenoid in Fig. 29–47 is being pulled away from the loop shown, in what direction is the induced current in the loop? Explain.

Verified step by step guidance

Step 1: Understand the concept of electromagnetic induction. When the magnetic flux through a loop changes, an induced current is generated in the loop according to Faraday's Law. The direction of the induced current is determined by Lenz's Law, which states that the induced current will oppose the change in magnetic flux.

Step 2: Analyze the situation described in the problem. The solenoid is being pulled away from the loop, which means the magnetic field produced by the solenoid is decreasing in the region of the loop. This reduction in magnetic flux through the loop is the key factor causing the induced current.

Step 3: Apply Lenz's Law. Since the magnetic flux is decreasing, the induced current in the loop will act to oppose this decrease. To do so, the induced current will create its own magnetic field in the same direction as the original field produced by the solenoid.

Step 4: Determine the direction of the induced current. Use the right-hand rule to find the direction of the induced current. If the solenoid's magnetic field points into the plane of the loop, the induced current will flow in a direction that maintains this field (clockwise or counterclockwise depending on the orientation).

Step 5: Conclude the direction of the induced current. Based on the orientation of the solenoid's magnetic field and the application of Lenz's Law, the induced current in the loop will flow in the direction that opposes the decrease in magnetic flux caused by the solenoid being pulled away.

Verified video answer for a similar problem:

This video solution was recommended by our tutors as helpful for the problem above

Video duration:

Play a video:

Was this helpful?

Key Concepts

Here are the essential concepts you must grasp in order to answer the question correctly.

Faraday's Law of Electromagnetic Induction

Faraday's Law states that a change in magnetic flux through a circuit induces an electromotive force (EMF) in that circuit. The induced EMF is proportional to the rate of change of the magnetic flux. This principle is fundamental in understanding how moving a magnet or changing the magnetic field around a conductor can generate electric current.

Lenz's Law

Lenz's Law provides the direction of the induced current resulting from electromagnetic induction. It states that the induced current will flow in a direction that opposes the change in magnetic flux that produced it. This means that if the magnetic field through a loop is decreasing, the induced current will flow in a direction that attempts to maintain the original magnetic field.

Magnetic Flux

Magnetic flux is a measure of the quantity of magnetism, taking into account the strength and the extent of a magnetic field. It is defined as the product of the magnetic field strength and the area through which the field lines pass, and it is affected by the angle between the field lines and the surface area. Understanding magnetic flux is crucial for analyzing how changes in the magnetic environment affect induced currents in nearby conductors.
