Textbook Question

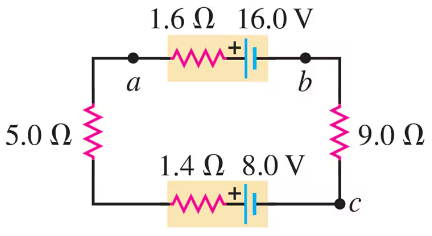

The circuit shown in Fig. E contains two batteries, each with an emf and an internal resistance, and two resistors. Find the current in the circuit (magnitude and direction).
1590
views
Ch 25: Current, Resistance, and EMF
