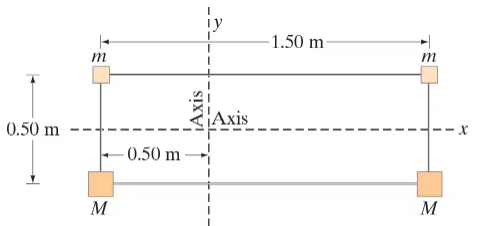

Calculate the moment of inertia of the array of point objects shown in Fig. 10–58 about the y axis, and the x axis. Assume m = 22kg, M = 3.2kg, and the objects are wired together by very light, rigid pieces of wire. The array is rectangular and is split through the middle by the x axis. About which axis would it be harder to accelerate this array?

Assume that a 1.00-kg ball is thrown solely by the action of the forearm, which rotates about the elbow joint under the action of the triceps muscle, Fig. 10–57. The ball is accelerated uniformly from rest to 8.5 m/s in 0.38 s, at which point it is released. Calculate the force required of the triceps muscle. Assume that the forearm has a mass of 3.7 kg and rotates like a uniform rod about an axis at its end.

A particle of mass m uniformly accelerates as it moves counterclockwise along the circumference of a circle of radius R: $\vec{r}=\hat{i}R\cos \theta +\hat{j}R\sin \theta$ with $\theta ={\omega }_{0}t+\frac{1}{2}\alpha t^2$, where the constants ω₀ and α are the initial angular velocity and angular acceleration, respectively. Determine the object’s tangential acceleration ${\overrightarrow{a}}_{\tan }$ and determine the torque acting on the object using $\vec{\tau }=I\vec{\alpha }$.

To get a flat, uniform cylindrical satellite spinning at the correct rate, engineers fire four tangential rockets as shown in Fig. 10–61. Suppose that the satellite has a mass of 3600 kg and a radius of 4.0 m, and that the rockets each add a mass of 250 kg. What is the steady force required of each rocket if the satellite is to reach 28 rpm in 5.0 min, starting from rest?

A solid rubber ball rests on the floor of a railroad car when the car begins moving with acceleration a. Assuming the ball rolls without slipping, what is its acceleration relative to the ground?

A dad pushes tangentially on a small hand-driven merry-go-round and is able to accelerate it from rest to a frequency of 15 rpm in 10.0 s. Assume the merry-go-round is a uniform disk of radius 2.5 m and has a mass of 330 kg, and two children (each with a mass of 25 kg) sit opposite each other on the edge. Calculate the torque required to produce the acceleration, neglecting frictional torque. What force is required at the edge?

A solid ball is released from rest and slides down a hillside that slopes downward at 65.0° from the horizontal. In part (a), why did we use the coefficient of static friction and not the coefficient of kinetic friction?

A solid uniform disk of mass 21.0 kg and radius 85.0 cm is at rest flat on a frictionless surface. Figure 10–76 shows a view from above. A string is wrapped around the rim of the disk and a constant force of 35.0 N is applied to the string. The string does not slip on the rim. When the cm has moved a distance of 5.2 m, determine how fast the disk is spinning (in radians per second.

(II) A potter is shaping a bowl on a potter’s wheel rotating at constant angular velocity of 1.6 rev/s (Fig. 10–59). The friction force between her hands and the clay is 1.8 N total. How long would it take for the potter’s wheel to stop if the only torque acting on it is due to the potter’s hands? The moment of inertia of the wheel and the bowl is 0.11 kg m².
