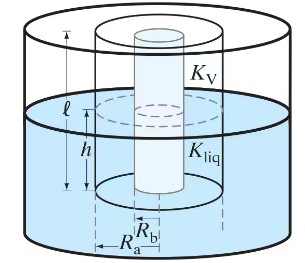

The quantity of liquid (such as cryogenic liquid nitrogen) available in its storage tank is often monitored by a capacitive level sensor. This sensor is a vertically aligned cylindrical capacitor with outer and inner conductor radii R_a and R_b, whose length ℓ spans the height of the tank. When a nonconducting liquid fills the tank to a height h ( ≤ ℓ ) from the tank’s bottom, the dielectric in the lower and upper regions between the cylindrical conductors is the liquid (K_liq) and its vapor (K_V), respectively (Fig. 24–33). (a) Determine a formula for the fraction F of the tank filled by liquid in terms of the level-sensor capacitance C. [Hint: Consider the sensor as a combination of two capacitors.] (b) By connecting a capacitance-measuring instrument to the level sensor, F can be monitored. Assume the sensor dimensions are ℓ = 2.0 m, R_a = 5.0 mm, and R_b = 4.5 mm. For liquid nitrogen (K_liq = 1.4, K_V = 1.0), what values of C (in pF) will correspond to the tank being completely full and completely empty?

(II) Two different dielectrics fill the space between the plates of a parallel-plate capacitor as shown in Fig. 24–31. Determine a formula for the capacitance in terms of K₁, K₂, the area A of the plates, and the separation d₁ = d₂ = d/2. [Hint: Can you consider this capacitor as two capacitors in series or in parallel?]

(II) Consider the circuit shown in Fig. 26–67, where all resistors have the same resistance R. At t = 0, with the capacitor C uncharged, the switch is closed. At t = ∞, what is the potential difference across the capacitor?

The variable capacitance of an old radio tuner consists of four plates connected together placed alternately between four other plates, also connected together (Fig. 24–36). Each plate is separated from its neighbor by 1.6 mm of air. One set of plates can move so that the area of overlap of each plate varies from 2.0 cm² to 9.0 cm².

(a) Are these seven capacitors connected in series or in parallel?

(b) Determine the range of capacitance values.

The capacitor shown in Fig. 24–34 is connected to an 80.0-V battery. Calculate (and sketch) the electric field everywhere between the capacitor plates. Find both the free charge on each capacitor plate and the induced charge on the faces of the glass dielectric plate.

(II) Consider the circuit shown in Fig. 26–67, where all resistors have the same resistance R. At t = 0, with the capacitor C uncharged, the switch is closed. At t = ∞, the currents can be determined by analyzing a simpler, equivalent circuit. Identify this simpler circuit and implement it in finding the values of I₁, I₂ and I₃ at t = ∞.

Paper has a dielectric constant K = 3.7 and a dielectric strength of 15 x 10⁶ V/m. Suppose that a typical sheet of paper has a thickness of 0.11 mm. You make a “homemade” capacitor by placing a sheet of 21 cm x 14 cm paper between two aluminum foil sheets (Fig. 24–40) of the same size. What is the capacitance C₀ of your device?
