(II) The bolts on the cylinder head of an engine require tightening to a torque of 95 m N. If a wrench is 28 cm long, what force perpendicular to the wrench must the mechanic exert at its end?

(II) A potter is shaping a bowl on a potter’s wheel rotating at constant angular velocity of 1.6 rev/s (Fig. 10–59). The friction force between her hands and the clay is 1.8 N total. How large is her torque on the wheel, if the diameter of the bowl is 9.0 cm? The moment of inertia of the wheel and the bowl is 0.11 kg m².

<IMAGE>

(II) A particle is located at $\overrightarrow{r}$ = ( 5.0î + 3.5ĵ + 6.0k̂)m. A force $\overrightarrow{F}$ = (8.0ĵ - 4.0k̂) N acts on it. What is the torque, calculated about the origin?

Force $\vec{F}=-10\hat{j}\text{N}$ is exerted on a particle at $\vec{r} = (5\hat{i} + 5\hat{j}) \, \text{m}$. What is the torque on the particle about the origin?

In FIGURE EX12.19, for what value of X_axle will the two forces provide 1.8 Nm of torque about the axle?

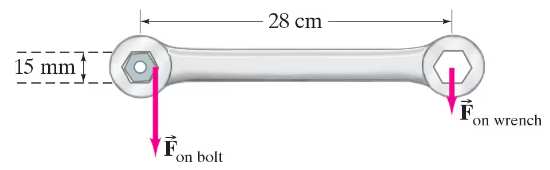

The bolts on the cylinder head of an engine require tightening to a torque of 95 m-N. If the six-sided bolt head is 15 mm across (Fig. 10–55), estimate the force applied near each of the six points by a wrench.

An engineer estimates that under the most adverse expected weather conditions, the total force on the highway sign in Fig. 11–33 will be $\overrightarrow{F}$ = (± 2.4 î - 4.1 ĵ) kN, acting at the cm. What torque does this force exert about the base O?

A particle of mass m uniformly accelerates as it moves counterclockwise along the circumference of a circle of radius R: $\overrightarrow{r}$ = î R cos θ + ĵ R sin θ with θ = ω₀t + (1/2)αt² , where the constants ω₀ and α are the initial angular velocity and angular acceleration, respectively. Determine the object’s tangential acceleration $\overrightarrow{a}$_tan and determine the torque acting on the object using $\overrightarrow{\tau }=\overrightarrow{r}\times F$.

(II) The origin of a coordinate system is at the center of a wheel which rotates in the xy plane about its axle which is the z axis. A force F = 215 N acts in the xy plane, at a 28.0° angle to the x axis, at the point x = 28.0 cm, y = 33.5 cm. Determine the magnitude and direction of the torque produced by this force about the axis.
