Problem 100c

Textbook Question

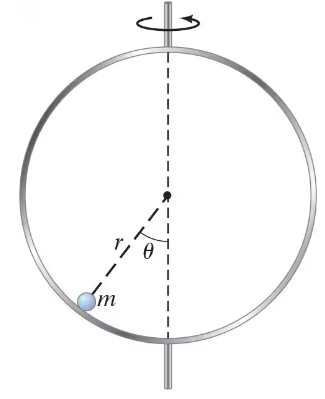

A small bead of mass m is constrained to slide without friction inside a circular vertical hoop of radius r which rotates about a vertical axis (Fig. 5–58) at a frequency f. Can the bead ride as high as the center of the circle (θ = 90°)? Explain.

Verified step by step guidance

Understand the problem: The bead is constrained to move inside a rotating vertical hoop. The question asks whether the bead can reach the center of the circle (θ = 90°), where θ is the angle measured from the bottom of the hoop. At this position, the bead would be at the same height as the center of the hoop.

Analyze the forces acting on the bead: At any position, the forces acting on the bead are (1) the gravitational force \( F_g = m g \), acting downward, and (2) the normal force exerted by the hoop, which provides the centripetal force required for circular motion. Additionally, the bead experiences a centrifugal force \( F_c = m \omega^2 r \sin(\theta) \) in the rotating reference frame, where \( \omega = 2 \pi f \) is the angular velocity.

Set up the condition for equilibrium at θ = 90°: For the bead to remain at θ = 90°, the net force in the radial direction must provide the centripetal force. At this position, the gravitational force \( m g \) acts perpendicular to the hoop, and the centrifugal force \( F_c \) acts outward along the radius. The normal force must balance these forces to keep the bead in equilibrium.

Write the force balance equation: At θ = 90°, the centrifugal force is \( F_c = m \omega^2 r \), and the gravitational force is \( F_g = m g \). For the bead to stay at this position, the normal force must satisfy \( N = F_c - F_g \). If \( F_c \) is less than \( F_g \), the bead cannot reach this position because the normal force would become negative, which is unphysical.

Determine the condition for the bead to reach θ = 90°: The centrifugal force must be at least equal to the gravitational force for the bead to reach this height. This gives the condition \( m \omega^2 r \geq m g \), or equivalently \( \omega^2 \geq \frac{g}{r} \). Substituting \( \omega = 2 \pi f \), the condition becomes \( (2 \pi f)^2 \geq \frac{g}{r} \), or \( f \geq \frac{1}{2 \pi} \sqrt{\frac{g}{r}} \). If this condition is met, the bead can reach θ = 90°.

Verified video answer for a similar problem:

This video solution was recommended by our tutors as helpful for the problem above

Video duration:

Play a video:

Was this helpful?

Key Concepts

Here are the essential concepts you must grasp in order to answer the question correctly.

Centripetal Force

Centripetal force is the net force required to keep an object moving in a circular path, directed towards the center of the circle. In the context of the bead in the hoop, this force is necessary to counteract the gravitational force acting on the bead and maintain its circular motion. The balance between gravitational force and the required centripetal force determines the maximum height the bead can achieve within the hoop.

Gravitational Potential Energy

Gravitational potential energy is the energy an object possesses due to its position in a gravitational field, typically calculated as U = mgh, where m is mass, g is the acceleration due to gravity, and h is the height above a reference point. As the bead rises within the hoop, its potential energy increases, which must be balanced by the kinetic energy and the forces acting on it to determine if it can reach the center of the hoop.

Equilibrium of Forces

Equilibrium of forces occurs when the net force acting on an object is zero, resulting in no acceleration. For the bead to ride at the center of the hoop (θ = 90°), the forces acting on it, including gravitational force and the normal force from the hoop, must balance perfectly. Analyzing these forces helps determine whether the bead can maintain this position without sliding down due to gravity.
