BackGuided Study: Identifying and Understanding Epithelial Tissue Types
Study Guide - Smart Notes
Tailored notes based on your materials, expanded with key definitions, examples, and context.
Q1. Label the basement membrane and free surface in the following epithelial tissue diagrams. Identify the type of epithelial tissue shown in each image.
Background
Topic: Epithelial Tissue Structure and Classification
This question is testing your ability to recognize and classify different types of epithelial tissues based on their cellular arrangement and morphology. It also asks you to identify key structural features such as the basement membrane and free surface, which are important for understanding tissue function and organization.
Key Terms and Concepts:
Basement membrane: A thin, fibrous layer that anchors epithelial tissue to underlying connective tissue.
Free surface (apical surface): The surface of the epithelial cell layer that is exposed to the body’s exterior or to the lumen of an internal organ.
Simple epithelium: A single layer of cells.
Stratified epithelium: Multiple layers of cells.
Cell shapes: Squamous (flat), cuboidal (cube-shaped), columnar (tall and column-like).
Step-by-Step Guidance
Examine each image and observe the number of cell layers and the shape of the cells at the free (apical) surface.
Identify the basement membrane in each diagram. This is typically shown as a blue or highlighted line at the base of the epithelial cells, separating them from underlying tissue.
Locate the free surface (apical surface) in each image. This is the edge of the tissue that faces the open space or lumen.
Classify each tissue based on the number of layers and the shape of the cells at the apical surface:
If there is a single layer of flat cells, it is likely simple squamous epithelium.
If there is a single layer of cube-shaped cells, it is likely simple cuboidal epithelium.
If there is a single layer of tall, column-like cells, it is likely simple columnar epithelium.
If there are multiple layers, especially with flat cells at the surface, it is likely stratified squamous epithelium.
Label the basement membrane and free surface on each diagram, and write the name of the tissue type next to each image.
Try solving on your own before revealing the answer!
Final Answer:
Image 1: Simple squamous epithelium (single layer of flat cells). Basement membrane is the blue line at the base; free surface is the top edge.
Image 2: Simple cuboidal epithelium (single layer of cube-shaped cells). Basement membrane is the blue line at the base; free surface is the top edge.
Image 3: Simple columnar epithelium (single layer of tall, column-like cells). Basement membrane is the blue line at the base; free surface is the top edge.

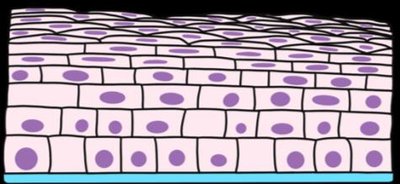

Image 4: Stratified squamous epithelium (multiple layers, flat cells at the surface). Basement membrane is the blue line at the base; free surface is the top edge.
Recognizing the arrangement and shape of cells is key to identifying epithelial tissue types. The basement membrane always anchors the tissue, while the free surface faces the lumen or external environment.
