Microscope Components and Their Functions

Microscope Cleaning and Preparation

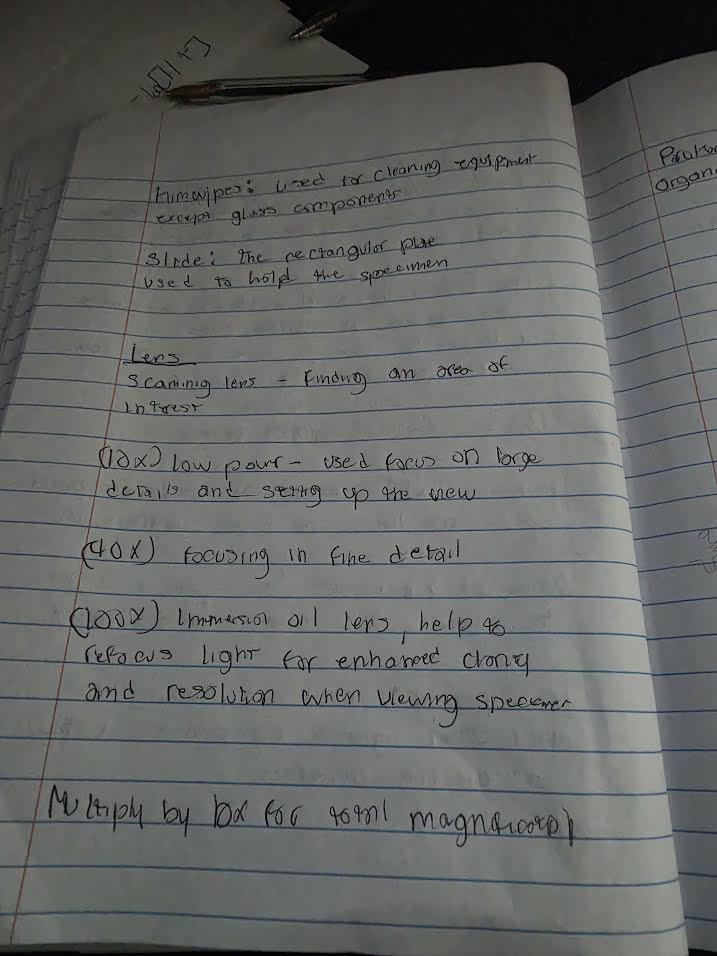

Proper use and maintenance of microscopes are essential for accurate biological observations. The following components are important for preparing and maintaining microscope slides and lenses:

• Lens paper: Special paper used for cleaning microscope lenses and other glass components to prevent scratching and maintain optical clarity.

• Slides: Rectangular glass or plastic plates used to hold specimens for microscopic examination.

Microscope Objective Lenses

Microscopes use a series of objective lenses to magnify specimens at different levels. Each lens serves a specific purpose in the observation process:

• Scanning lens (typically 4x): Used for finding an area of interest on the slide. Provides the widest field of view and lowest magnification.

• Low power lens (10x): Used to focus on larger details and for setting up the view before moving to higher magnifications.

• High power lens (40x): Used for focusing on finer details within the specimen.

• Oil immersion lens (100x): Used with immersion oil to increase resolution and clarity. The oil helps to refract light more efficiently, allowing for enhanced detail when viewing very small structures.

Total Magnification Calculation

The total magnification of a microscope is determined by multiplying the magnification of the ocular (eyepiece) lens by the magnification of the objective lens in use:

• Formula:

• Example: If the ocular lens is 10x and the objective lens is 40x, the total magnification is .

Additional info: Proper cleaning and handling of microscope components are crucial for maintaining image quality and preventing damage to delicate optical surfaces. Immersion oil should only be used with the oil immersion lens and must be cleaned off after use to avoid residue buildup.
