Graphs, Charts, and Tables—Describing Your Data

Introduction

Effective data presentation is essential in business statistics for transforming raw data into meaningful information. Graphs, charts, and tables are fundamental descriptive statistical tools that help summarize, visualize, and interpret data, enabling better decision-making and communication.

Frequency Distributions and Histograms

Frequency Distribution

A frequency distribution is a summary of a set of data that displays the number of observations in each distinct category or class. It is especially useful for discrete data, which can take on a countable number of possible values.

• Discrete Data: Data with countable values (e.g., number of trips).

• Frequency: The count of observations in each category.

Example: Taxi Ride Sharing Frequency Distribution

City employees were polled on their use of ride sharing services in the past month. The frequency distribution is shown below:

Relative Frequency Distribution

The relative frequency is the proportion of total observations in a given category, calculated as:

• Formula:

• Can be converted to percentages by multiplying by 100.

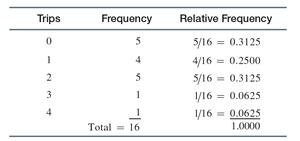

Example: Taxi Ride Sharing Relative Frequency Distribution

Constructing Frequency Distributions in Excel

Excel can be used to construct frequency distributions efficiently. The process involves entering possible values, selecting cells, and using the FREQUENCY function.

• Open the data file.

• Enter possible values for the variable.

• Select cells for frequency values.

• Use the Statistical-FREQUENCY function.

• Press Ctrl-Shift-Enter to compute frequencies.

Continuous Data and Grouped Frequency Distributions

Continuous data can assume any value within an interval and are uncountable (e.g., weight, time, length). For such data, grouped frequency distributions are used, where data are sorted and grouped into classes.

• Data Array: Sorted quantitative data.

• Classes: Defined intervals for grouping data.

Criteria for Classes

• Mutually Exclusive: No overlap between classes.

• All-Inclusive: All possible values are included.

• Equal-Width: Each class has the same interval width.

• No Empty Classes: Avoid empty classes if possible.

Example: Emergency Response Communication Times

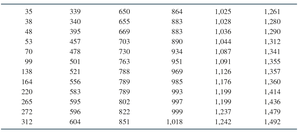

Data on time to link systems (in seconds) for 72 cities:

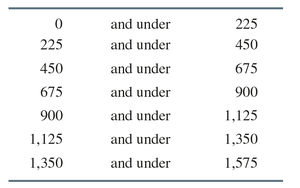

Class boundaries for grouped data:

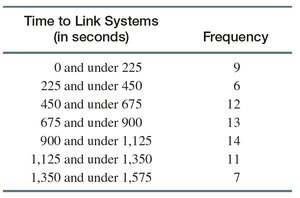

Frequency distribution for time to link systems:

Histograms

Definition and Interpretation

A histogram is a graphical representation of a frequency distribution for a quantitative variable. It helps identify the center, spread, and shape of the data distribution.

• Center: The point around which data cluster.

• Spread: The degree of variation in the data.

• Shape: Distribution can be flat, skewed, balanced, or bell-shaped.

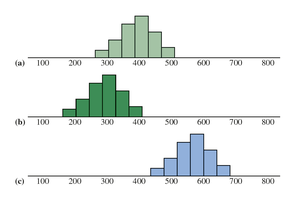

Example: Histograms Showing Different Centers

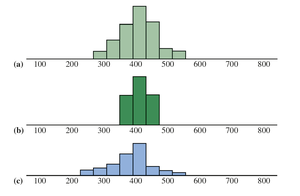

Example: Histograms—Same Center, Different Spread

The standard deviation is a numerical measure of spread in the values of a random variable.

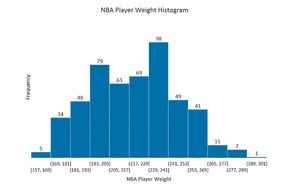

Frequency Histogram Example

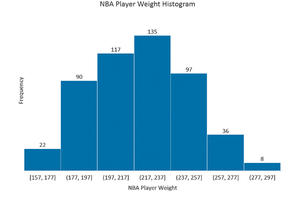

NBA Player Weights: Frequency histogram constructed using Excel for 505 NBA players.

Frequency Table for NBA Player Weights

Relative Frequency Histograms and Ogives

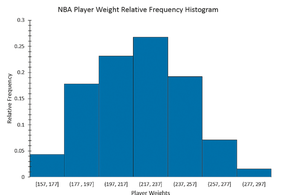

Relative Frequency Histogram

A relative frequency histogram displays the relative frequencies on the vertical axis. The shape is identical to the frequency histogram, but the scale differs.

Ogive

An ogive is a graph of cumulative relative frequency. It is constructed by plotting points above the upper limit of each class at a height corresponding to the cumulative relative frequency and connecting them with a line.

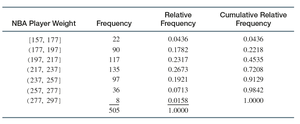

Relative and Cumulative Relative Frequency Table

Joint Frequency Distribution

Definition

A joint frequency distribution examines data characterized by more than one variable, allowing for the analysis of relationships between variables (e.g., gender and credit card balance).

Bar Charts, Pie Charts, and Stem and Leaf Diagrams

Bar Chart

A bar chart is a graphical representation of categorical data, where each bar represents the frequency or percentage of observations in a category. Bars can be vertical or horizontal and may be colored to distinguish categories.

Pie Chart

A pie chart is a circular graph divided into slices, each representing a category. The size of each slice is proportional to the magnitude of the variable associated with the category.

Stem and Leaf Diagram

A stem and leaf diagram is similar to a histogram but retains individual data values, making it useful for exploratory analysis of quantitative data.

Line Charts, Scatter Diagrams, and Pareto Charts

Line Chart

A line chart is a two-dimensional chart with time on the horizontal axis and the variable of interest on the vertical axis. It is commonly used to show trends over time.

Scatter Diagram

A scatter diagram (or scatter plot) is a two-dimensional graph of plotted points, where the vertical axis represents the dependent variable and the horizontal axis represents the independent variable. It is used to visualize relationships between two quantitative variables.

Pareto Chart

A Pareto chart is a special type of bar chart where bars are arranged from high to low. It is used in quality improvement applications to identify the most significant causes of problems, following the Pareto Principle (80-20 rule).

Summary Table: Types of Graphs and Their Uses

Key Takeaway: Mastery of these graphical and tabular techniques is essential for effective data analysis and communication in business statistics.
