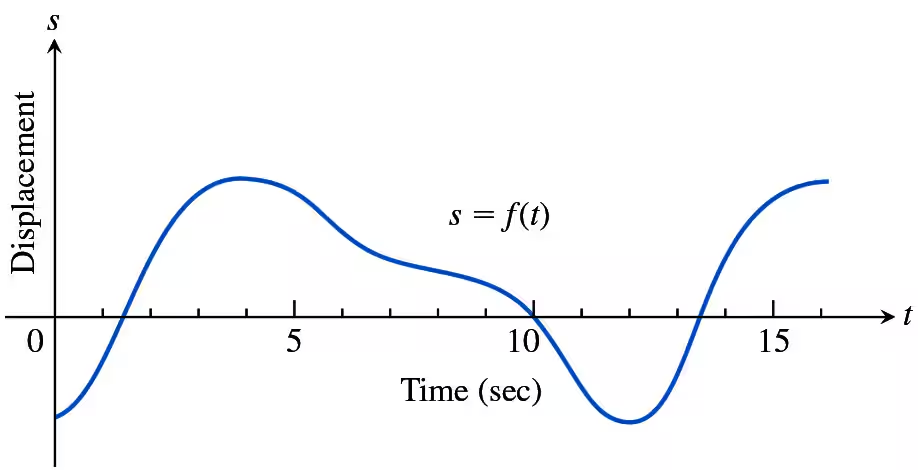

106. Motion Along a Line The graphs in Exercises 105 and 106 show the position s=f(t) of an object moving up and down on a coordinate line. At approximately what times is the (d) When is the acceleration positive? Negative?

Understanding Motion from Graphs

The accompanying figure shows the velocity v = f(t) of a particle moving on a horizontal coordinate line.

c. When does the particle move at its greatest speed?

Understanding Motion from Graphs

The accompanying figure shows the velocity v = f(t) of a particle moving on a horizontal coordinate line.

d. When does the particle stand still for more than an instant?

Finding g on a small airless planet Explorers on a small airless planet used a spring gun to launch a ball bearing vertically upward from the surface at a launch velocity of 15 m/sec. Because the acceleration of gravity at the planet’s surface was gₛ m/sec², the explorers expected the ball bearing to reach a height of s = 15t − (1/2)gₛt² m t sec later. The ball bearing reached its maximum height 20 sec after being launched. What was the value of gₛ?

105. Motion Along a Line The graphs in Exercises 105 and 106 show the position s=f(t) of an object moving up and down on a coordinate line. At approximately what times is the (c) Acceleration equal to zero?

106. Motion Along a Line The graphs in Exercises 105 and 106 show the position s=f(t) of an object moving up and down on a coordinate line. At approximately what times is the (b) velocity equal to zero?

<IMAGE>

The accompanying figure shows the velocity v = ds/dt = f(t) (m/sec) of a body moving along a coordinate line.

a. When does the body reverse direction?

Suppose the position of a particle moving along a straight line is given by the graph below. At time $t=2$ seconds, estimate the value of the velocity and acceleration of the particle using the graph.

Given the vector-valued function $r\left(t\right)=(t^2,\frac{2}{3}{t}^3,t)$, find the unit tangent vector $T$, the unit normal vector $N$, and the unit binormal vector $B$ at the point $(4,\frac{-16}{3},-2)$. Which of the following correctly gives the unit tangent vector $T$ at that point?
