Measurement and Problem Solving

Scientific Notation

Scientific notation is a method used to express very large or very small numbers in a concise form. It consists of two parts: a decimal part (between 1 and 10) and an exponential part (10 raised to an integer exponent).

• Decimal Part: A number between 1 and 10.

• Exponential Part: 10 raised to an integer exponent, n.

• Positive Exponent: Indicates multiplication by 10 n times.

• Negative Exponent: Indicates division by 10 n times.

• Conversion Steps: Move the decimal point to create a number between 1 and 10, then multiply by 10 raised to the appropriate power (positive if moved left, negative if moved right).

• Example:

• Example:

Uncertainty in Measurement

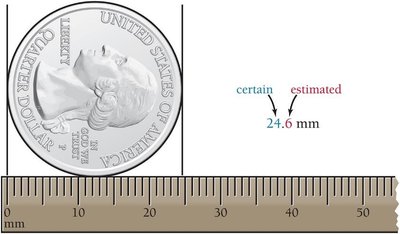

All measurements have some degree of uncertainty, which is reflected in the way numbers are reported. The last digit in a measured value is always estimated, indicating the uncertainty.

• Precision: More digits indicate greater precision.

• Uncertainty: The last reported digit is uncertain.

• Example: Reporting a temperature increase as 0.6°C means the actual value could be between 0.5°C and 0.7°C.

Significant Figures

Significant figures (sig figs) are the digits in a measurement that are known with certainty plus one digit that is estimated. The rules for determining significant figures are essential for reporting scientific data accurately.

• All nonzero digits are significant.

• Interior zeros (between nonzero digits) are significant.

• Trailing zeros after a decimal point are significant.

• Trailing zeros before a decimal point are significant.

• Leading zeros (before the first nonzero digit) are not significant.

• Trailing zeros at the end of a number without a decimal point are ambiguous.

• Exact numbers (from counting or definitions) have unlimited significant figures.

Estimating Measurements

When reading instruments, estimate one digit beyond the smallest marked unit.

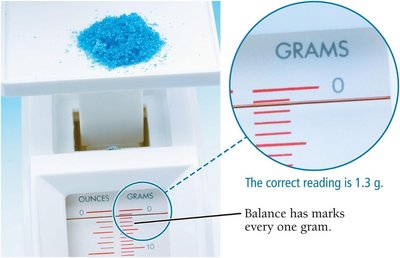

• Example: If a balance is marked every 1 gram, estimate to the tenths place (e.g., 1.3 g).

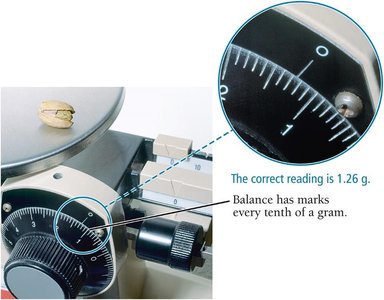

• Example: If a balance is marked every 0.1 gram, estimate to the hundredths place (e.g., 1.26 g).

Significant Figures in Calculations

Rules for rounding and reporting significant figures depend on the type of calculation:

• Multiplication/Division: The result has the same number of significant figures as the factor with the fewest significant figures.

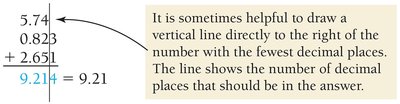

• Addition/Subtraction: The result has the same number of decimal places as the quantity with the fewest decimal places.

• Mixed Operations: Follow the order of operations, applying the appropriate rule at each step, but round only the final answer.

Units of Measurement

SI Units

The International System of Units (SI) is the standard for scientific measurements. The main SI base units are:

Length

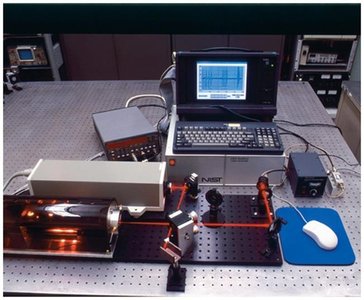

The meter is defined as the distance light travels in vacuum in 1/299,792,458 seconds.

Mass

The kilogram is defined using Planck’s constant and is a measure of the quantity of matter.

Time

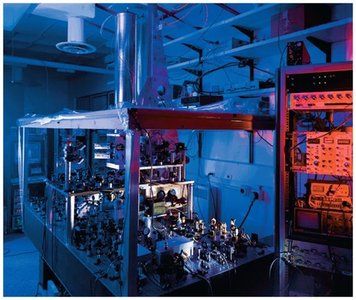

The second is defined as the duration of 9,192,631,770 periods of radiation from a cesium-133 atom.

Weight vs. Mass

• Mass: Quantity of matter in an object (does not depend on gravity).

• Weight: Gravitational pull on an object (depends on gravity).

SI Prefix Multipliers

Prefix multipliers are used to express units that are much larger or smaller than the base unit.

Volume as a Derived Unit

Volume is a derived unit, calculated as length cubed. Common units include cubic meters (), cubic centimeters (), and liters (L).

Problem Solving and Unit Conversions

Dimensional Analysis

Dimensional analysis is a systematic approach to problem solving that uses units as a guide. Units are treated algebraically, allowing for multiplication, division, and cancellation.

• Conversion Factor: A ratio of equivalent quantities used to convert from one unit to another.

• Solution Map: A visual outline of the steps needed to solve a problem, focusing on unit conversions.

General Problem-Solving Strategy

• Sort: Identify the given information and what you need to find.

• Strategize: Create a solution map.

• Solve: Perform calculations, keeping track of units and significant figures.

• Check: Ensure the answer makes sense physically and the units are correct.

Converting Units Raised to a Power

When converting units raised to a power, the conversion factor must also be raised to that power. For example, to convert to , cube the conversion factor between inches and centimeters.

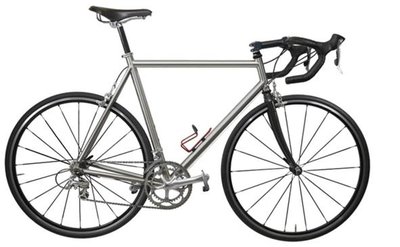

Density

Definition and Calculation

Density is a physical property defined as the mass of a substance divided by its volume.

• Formula:

• Units: Commonly reported in or .

• Example Calculation: A liquid with mass 27.2 g and volume 22.5 mL has density .

Density as a Conversion Factor

Density can be used to convert between mass and volume.

• Example: For a liquid with density , to find the volume that gives 68.4 g:

Densities of Common Substances

Importance of Units in Science

Case Study: Mars Climate Orbiter

In 1999, NASA lost a $125 million Mars Climate Orbiter due to a failure to communicate units between engineering teams. One team used metric units, while the other used English units, causing the orbiter to descend too far into the Martian atmosphere and burn up. This highlights the critical importance of unit consistency in scientific calculations.

Summary of Key Learning Outcomes

• Express numbers in scientific notation.

• Report measured quantities with the correct number of digits and significant figures.

• Apply rules for significant figures in calculations.

• Convert between units, including those raised to a power and those in numerators and denominators.

• Calculate and use density as a conversion factor.
