Immunization

Overview of Immunization

Immunization is the process by which an individual's immune system becomes fortified against an agent (known as the immunogen). This can be achieved through natural exposure or artificial means. Artificial immunization is a cornerstone of public health, drastically reducing the prevalence of many infectious diseases.

  • Active Immunization: Administration of antigens to stimulate the patient's own adaptive immune response.

  • Passive Immunotherapy: Transfer of preformed antibodies from an immune individual or animal to provide immediate protection.

Brief History of Immunization

  • Early observations in China noted that children who recovered from smallpox did not contract the disease again. This led to variolation, the deliberate infection with material from smallpox scabs.

  • 1796: Edward Jenner developed the process of vaccination using cowpox to protect against smallpox.

  • 1879: Louis Pasteur developed a vaccine against Pasteurella multocida.

  • Antibody transfer was developed after it was discovered that vaccines protect through the action of antibodies.

Despite the success of vaccines, some developing nations lack access, and not all pathogens have effective vaccines. Concerns about vaccine safety can also hinder development and uptake.

Graph showing the effect of immunization on polio and measles prevalence in the US

Active Immunization

Types of Vaccines

Vaccines are classified based on their composition and method of preparation. Each type has specific advantages and limitations.

  • Attenuated (Modified Live) Vaccines: Contain pathogens with reduced virulence (attenuation). They stimulate strong, long-lasting immunity and can provide contact immunity, but may cause mild infections and are not suitable for immunocompromised individuals.

  • Inactivated (Killed) Vaccines: Contain whole microbes or antigenic fragments that have been inactivated. They are safer but often require multiple doses and adjuvants to enhance immune response.

  • Toxoid Vaccines: Use chemically or thermally modified toxins to stimulate immunity, especially for bacterial diseases. Multiple doses are required due to limited antigenic determinants.

  • Combination Vaccines: Simultaneously administer antigens from several pathogens.

  • Recombinant Gene Technology Vaccines: Use recombinant DNA techniques to improve efficacy, safety, and cost-effectiveness.

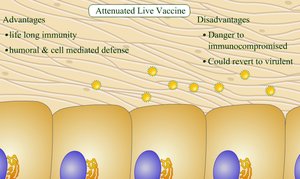

Diagram showing uses of recombinant DNA technology for vaccines Illustration of advantages and disadvantages of attenuated live vaccines

Vaccine Manufacture and Administration

Vaccines are mass-produced by culturing microbes in vessels; viruses are often grown in chicken eggs. Individuals with egg allergies must avoid certain vaccines.

CDC recommended immunization schedule

Principal Vaccines to Prevent Human Diseases

The following tables summarize the main vaccines, their target diseases, types, and methods of administration.

Vaccine

Disease Agent

Disease

Vaccine Type

Method of Administration

Hepatitis B

Hepatitis B virus

Hepatitis B

Inactivated subunit (recombinant)

Intramuscular

Rotavirus

Rotavirus

Gastroenteritis

Attenuated

Oral

Diphtheria/tetanus/pertussis (DTaP)

Corynebacterium diphtheriae, Clostridium tetani, Bordetella pertussis

Diphtheria, tetanus, whooping cough

Toxoid, inactivated subunit

Intramuscular

Haemophilus influenzae type b

H. influenzae type b

Meningitis, pneumonia, epiglottitis

Inactivated subunit (conjugated)

Intramuscular

Pneumococcal (PCV13)

Streptococcus pneumoniae

Pneumonia, meningitis, otitis media

Inactivated subunit (conjugated)

Intramuscular

Polio (IPV)

Poliovirus

Poliomyelitis

Inactivated whole

Subcutaneous or intramuscular

Influenza

Influenza virus

Flu

Inactivated subunit

Intramuscular or intranasal

Measles, mumps, rubella (MMR)

Measles, mumps, rubella viruses

Measles, mumps, rubella

Attenuated

Subcutaneous

Varicella-zoster

Varicella-zoster virus

Chickenpox, shingles

Attenuated

Subcutaneous

Hepatitis A

Hepatitis A virus

Hepatitis A

Inactivated whole

Intramuscular

Human papillomavirus (HPV)

HPV

Cervical cancer, genital warts

Inactivated subunit (recombinant)

Intramuscular

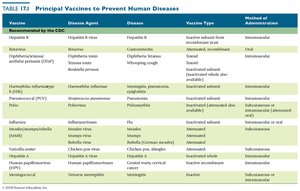

Table of principal vaccines to prevent human diseases (part 1) Table of principal vaccines to prevent human diseases (part 2)

Vaccine Safety

  • Mild toxicity is the most common side effect.

  • Rare risks include anaphylactic shock and residual virulence from attenuated viruses.

  • Allegations of vaccines causing autism, diabetes, or asthma are not supported by scientific evidence.

Passive Immunotherapy

Principles and Applications

Passive immunotherapy involves the administration of antiserum containing preformed antibodies. It provides immediate, short-term protection but does not confer long-lasting immunity.

  • Can trigger allergic reactions (serum sickness).

  • Antibodies are degraded quickly; no memory cells are produced.

  • Hybridomas (fusion of plasma cells and myeloma cells) are used to produce monoclonal antibodies, overcoming some limitations of traditional antisera.

Production of hybridomas for monoclonal antibodies Graph comparing immunity from active immunization and passive immunotherapy

Serological Tests That Use Antigens and Corresponding Antibodies

Overview of Serology

Serology is the study of antigen-antibody interactions in blood serum. Serological tests are essential for diagnosing diseases, monitoring infection spread, and determining immune status.

Precipitation Tests

Precipitation tests detect the formation of insoluble antigen-antibody complexes (precipitates) when antigens and antibodies are mixed in optimal proportions. Immunodiffusion is a common technique.

Characteristics of precipitation reactions Immunodiffusion precipitation reaction

Turbidimetric and Nephelometric Tests

These tests measure the cloudiness (turbidity) of a solution to quantify proteins such as antibodies or antigens. Turbidimetry measures transmitted light, while nephelometry measures reflected light.

Agglutination Tests

Agglutination involves the clumping of insoluble particles due to antibody cross-linking. It is visually detectable and used for blood typing (hemagglutination) and diagnosis of various diseases. Titration measures antibody levels by serial dilution.

Hemagglutination for blood typing Agglutination titration test

Neutralization Tests

Neutralization tests determine the presence of antibodies that neutralize pathogens or their toxins. Viral neutralization tests detect antibodies by their ability to prevent cytopathic effects in cell cultures. Viral hemagglutination inhibition tests are used for viruses that agglutinate red blood cells.

Complement Fixation Test

This test detects specific antibodies by measuring the activation of complement proteins, which form membrane attack complexes. It is sensitive but has largely been replaced by other methods.

Labeled Antibody Tests

Labeled antibody tests use antibodies linked to detectable markers (fluorescent dyes or enzymes) to identify antigens or antibodies.

  • Fluorescent Antibody Tests: Use fluorescent dyes to visualize antigen-antibody binding. Includes direct and indirect tests.

Fluorescent antibody test showing rabies proteins Indirect fluorescent antibody test

  • ELISA (Enzyme-Linked Immunosorbent Assay): Uses enzyme-labeled antibodies to produce a color change upon binding. It is sensitive, quantitative, and suitable for high-throughput testing.

ELISA test procedure and results

  • Antibody Sandwich ELISA: Detects antigens by "sandwiching" them between two antibodies.

Antibody sandwich ELISA

  • Immunoblot (Western Blot): Detects antibodies against multiple antigens by separating proteins via electrophoresis, transferring them to a membrane, and visualizing bound antibodies.

Immunoblotting (western blotting) procedure Immunoblotting results for multiple patients

Point-of-Care Testing

Point-of-care immunoassays provide rapid results and are useful for quick diagnosis. Common types include immunofiltration and immunochromatography assays.

  • Immunofiltration: A rapid ELISA variant using membrane filters for faster results.

  • Immunochromatography: Antigen solution flows through a porous strip, producing a visible line when antigen-antibody complexes are present. Used in pregnancy tests and rapid infection diagnostics.

Immunochromatographic dipstick test

Summary Table: Antibody-Antigen Immunological Tests and Their Uses

Test

Use

Immunodiffusion (precipitation)

Diagnosis of syphilis, pneumococcal pneumonia

Agglutination

Blood typing, pregnancy testing, diagnosis of infections (brucellosis, typhoid, etc.)

Viral neutralization

Diagnosis of infections by specific viruses

Complement fixation

Diagnosis of various infections (influenza, measles, etc.)

Direct fluorescent antibody

Diagnosis of rabies, infections of group A Streptococcus

Indirect fluorescent antibody

Diagnosis of syphilis, mononucleosis

ELISA

Pregnancy testing, diagnosis of HIV, hepatitis B, rubella, etc.

Immunoblot (western blot)

Confirmation of HIV, diagnosis of Lyme disease

Table of antibody-antigen immunological tests and their uses

Key Concepts and Applications

  • Vaccines have drastically reduced the incidence of many infectious diseases. Continued immunization is essential to prevent outbreaks, even when disease prevalence is low.

  • Serological tests are vital tools for diagnosis, epidemiology, and monitoring immune status.

  • Understanding the principles and limitations of each test is crucial for their effective application in clinical and research settings.
