Alkyl Halides and Alcohols: Nucleophilic Substitution

Introduction to Functional Groups and Reaction Mechanisms

Organic chemistry relies on the concept of functional groups—specific atoms or groups of atoms within molecules that are primarily responsible for the characteristic chemical reactions of those molecules. Understanding how these groups react under various conditions is essential for predicting and explaining organic reactions. The mechanism of a reaction describes the step-by-step transformation of reactants to products, including the movement of electrons and the formation or breaking of bonds.

Alcohols and Alkyl Halides: Structure and Classification

• Alcohols have the general formula R–OH, where R is an alkyl group.

• Alkyl halides have the general formula R–X, where X is a halogen (Cl, Br, I, or F).

• Both alcohols and alkyl halides are classified as primary (1°), secondary (2°), or tertiary (3°) based on the number of carbon atoms bonded to the carbon bearing the functional group.

• Aromatic alcohols (phenols) have the –OH group attached to a benzene ring.

Classes of Halogenated Organic Compounds

• Alkyl halides: Halogen attached to an sp3 carbon of an alkyl group.

• Vinyl halides: Halogen attached to an sp2 carbon of an alkene.

• Aryl halides: Halogen attached to a benzene ring.

Geminal and Vicinal Dihalides

• Geminal dihalide: Two halogens on the same carbon.

• Vicinal dihalide: Two halogens on adjacent carbons.

Bonding and Structure

• The carbon atom bonded to –OH or X is sp3 hybridized (tetrahedral geometry).

• Both alcohols and alkyl halides are polar molecules with significant dipole moments due to the electronegativity difference between carbon and oxygen/halogen.

Physical Properties of Alcohols and Alkyl Halides

• Boiling Points: Alcohols have much higher boiling points than alkyl halides due to strong hydrogen bonding. Alkyl halides' boiling points increase with molecular weight and polarizability of the halogen (C–F < C–Cl < C–Br < C–I).

• London Dispersion Forces: These are the main intermolecular forces in alkyl halides, increasing with the size and polarizability of the halogen.

• Fluorine Exception: Increasing the number of fluorine atoms does not significantly increase boiling points due to fluorine's low polarizability.

Polarizability

• Polarizability is the ease with which the electron cloud of a molecule can be distorted. Larger, more distant electrons increase polarizability, enhancing London forces.

• Fluorinated hydrocarbons (e.g., Teflon) have low polarizability and weak intermolecular forces, making them useful as non-stick coatings.

Solubility in Water

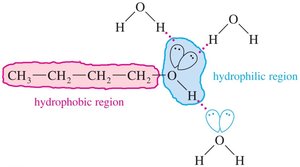

• Alcohols: Low molecular weight alcohols are miscible with water due to hydrogen bonding. As the alkyl chain length increases, solubility decreases due to the hydrophobic effect.

• Alkyl halides: Generally insoluble in water due to their inability to form hydrogen bonds.

Density

• Alkyl fluorides and chlorides are less dense than water; bromides and iodides are denser.

• Polyhalogenation increases density (e.g., CH2Cl2, CHCl3, CCl4 are all denser than water).

• All liquid alcohols have densities around 0.8 g/mL (less dense than water).

IUPAC Nomenclature of Alkyl Halides and Alcohols

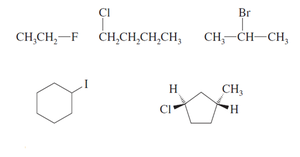

• Alkyl Halides: Named either by functional class nomenclature (alkyl + halide) or substitutive nomenclature (haloalkane, with the halogen as a substituent).

• Number the chain to give the lowest possible number to the substituent (halogen or alkyl group).

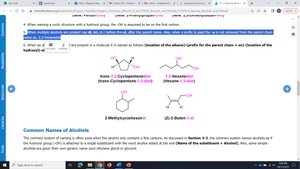

• Alcohols: Named by replacing the -e of the parent alkane with -ol. The chain is numbered to give the lowest number to the carbon bearing the –OH group. Multiple –OH groups use diol, triol, etc.

• Hydroxyl groups take precedence over alkyl and halogen substituents in numbering.

Classification of Alcohols and Alkyl Halides

• Primary (1°): Carbon with –OH or –X is bonded to one other carbon.

• Secondary (2°): Carbon with –OH or –X is bonded to two other carbons.

• Tertiary (3°): Carbon with –OH or –X is bonded to three other carbons.

• Aromatic (phenol): –OH is bonded to a benzene ring.

Structure, Bonding, and Stability of Carbocations

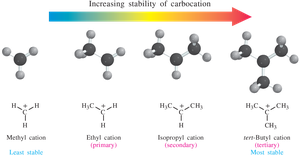

Carbocations are intermediates in many organic reactions, especially nucleophilic substitutions. Their stability increases with the number of alkyl groups attached to the positively charged carbon due to hyperconjugation and inductive effects:

• Methyl < Primary < Secondary < Tertiary

Carbocation Rearrangements

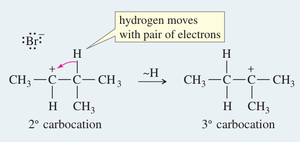

Carbocations can rearrange to form more stable ions via hydride shifts (migration of a hydrogen with its electron pair) or alkyl shifts (migration of an alkyl group). These rearrangements occur when a more stable carbocation can be formed.

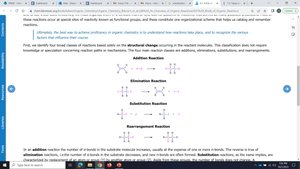

Types of Organic Reactions

• Addition: Increase in σ-bonds, usually at the expense of π-bonds.

• Elimination: Decrease in σ-bonds, formation of new π-bonds.

• Substitution: Replacement of one atom or group by another.

• Rearrangement: Formation of an isomer, with no change in the number of bonds.

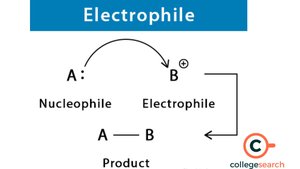

Nucleophiles and Electrophiles

• Nucleophile: Electron-rich species that donate a pair of electrons to form a new covalent bond ("nucleus-loving").

• Electrophile: Electron-deficient species that accept a pair of electrons ("electron-loving").

SN1 and SN2 Reaction Mechanisms

SN1 Reaction (Substitution Nucleophilic Unimolecular)

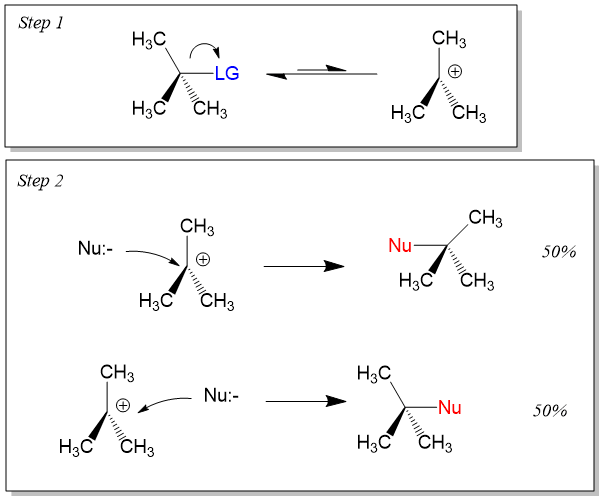

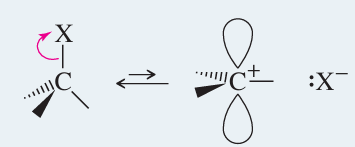

• Two-step mechanism: (1) Leaving group departs, forming a carbocation; (2) Nucleophile attacks the carbocation.

• First-order kinetics: Rate depends only on the concentration of the substrate.

• Favored by tertiary carbons (stable carbocations), polar protic solvents, and good leaving groups.

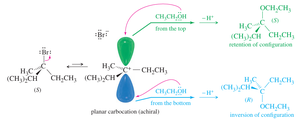

• Often leads to racemization at a stereocenter due to planar carbocation intermediate.

Rearrangements in SN1 Reactions

Carbocations formed during SN1 reactions may rearrange to more stable carbocations, leading to unexpected products.

Solvent Effects in SN1

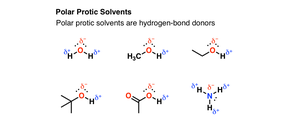

• Polar protic solvents (e.g., water, alcohols) stabilize ions and speed up the rate-determining step (carbocation formation).

SN2 Reaction (Substitution Nucleophilic Bimolecular)

• One-step mechanism: Nucleophile attacks the electrophilic carbon as the leaving group departs (concerted reaction).

• Second-order kinetics: Rate depends on both substrate and nucleophile concentrations.

• Favored by primary carbons (less steric hindrance), strong nucleophiles, and polar aprotic solvents.

• Always results in inversion of configuration at the stereocenter (Walden inversion).

Factors Affecting SN2 Reactions

• Nucleophile strength: Negatively charged species are generally stronger nucleophiles than their neutral counterparts.

• Substrate structure: Less steric hindrance (primary > secondary > tertiary) favors SN2.

• Solvent: Polar aprotic solvents increase nucleophilicity by not solvating anions strongly.

• Leaving group: Good leaving groups are weak bases and highly polarizable (e.g., I– > Br– > Cl– > F–).

Comparison of SN1 and SN2 Mechanisms

Preparation of Alkyl Halides from Alcohols

• Alcohols react with hydrogen halides (HX) to form alkyl halides and water. The reactivity order of hydrogen halides is HI > HBr > HCl > HF.

• Tertiary alcohols react fastest, primary slowest.

• Other reagents for converting alcohols to alkyl halides include thionyl chloride (SOCl2), phosphorus trichloride (PCl3), and phosphorus tribromide (PBr3).

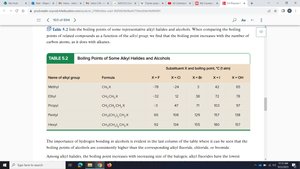

Summary Table: Boiling Points of Some Alkyl Halides and Alcohols

Key Terms and Concepts

• Functional group: Atom or group responsible for characteristic reactions.

• Mechanism: Stepwise description of how reactants become products.

• Nucleophile: Electron-rich species that donates electrons.

• Electrophile: Electron-deficient species that accepts electrons.

• Leaving group: Atom or group that departs with a pair of electrons in substitution/elimination reactions.

• Carbocation: Positively charged carbon intermediate.

• Hydride shift: Migration of a hydrogen atom with its electron pair.

• Alkyl shift: Migration of an alkyl group with its electron pair.

Additional info: This guide covers the foundational aspects of alkyl halides and alcohols, their physical properties, nomenclature, reaction mechanisms (SN1 and SN2), and the factors influencing these reactions, as relevant to a college-level organic chemistry course.
