Chapter 5: Stereochemistry

Introduction to Stereochemistry

Stereochemistry is the study of the three-dimensional arrangement of atoms in molecules. It is essential for understanding organic chemistry, biochemistry, and biology, as biological systems often distinguish between molecules with subtle stereochemical differences. Stereoisomers can have remarkably different physical, chemical, and biological properties.

Types of Isomers

• Structural Isomers: Molecules with the same molecular formula but different connectivity.

• Stereoisomers: Molecules with the same connectivity but different spatial arrangement.

• Chain Isomers: Different arrangement of the carbon skeleton.

• Position Isomers: Different position of the same functional group.

• Functional Isomers: Different functional groups with the same molecular formula.

• Geometric Isomers: Different substituents around a bond with restricted rotation (cis/trans).

• Optical Isomers: Non-superimposable mirror images (enantiomers).

Geometric Isomerism: Cis and Trans Isomers

Geometric isomers arise from restricted rotation around double bonds or rings. The cis and trans isomers of butenedioic acid (maleic acid and fumaric acid) are classic examples. These isomers have the same formula but differ in spatial arrangement, leading to different properties.

• Cis Isomer (Maleic Acid): Toxic and irritating to tissues.

• Trans Isomer (Fumaric Acid): Essential metabolic intermediate.

Chirality and Enantiomerism

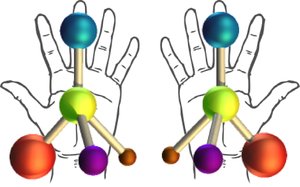

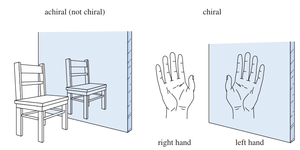

Chirality refers to the property of a molecule that makes it non-superimposable on its mirror image, much like left and right hands. Chiral molecules have enantiomers, which are mirror-image isomers. Achiral molecules are superimposable on their mirror images.

• Chiral: Non-superimposable mirror image.

• Achiral: Superimposable mirror image.

Chirality in Organic Molecules

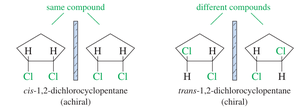

Molecules can be chiral or achiral. For example, cis-1,2-dichlorocyclopentane is achiral, while trans-1,2-dichlorocyclopentane is chiral.

Definitions

Testing for Chirality: Superimposability

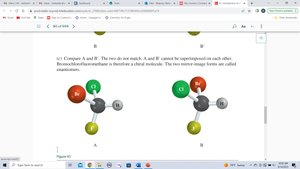

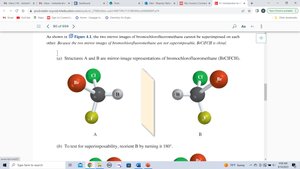

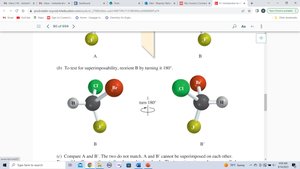

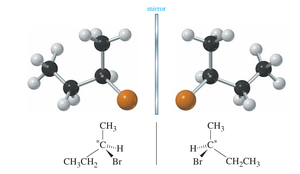

To test for chirality, compare a molecule with its mirror image. If they cannot be superimposed, the molecule is chiral and the two forms are enantiomers.

Chirality Centers and Stereocenters

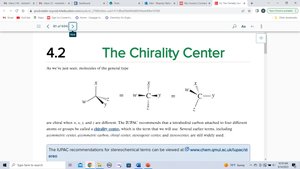

A chirality center (asymmetric carbon) is a tetrahedral carbon atom bonded to four different groups. The presence of a chirality center is a quick way to determine if a molecule is chiral.

• Chirality Center: Tetrahedral carbon attached to four different groups.

• Stereocenter: Any atom at which the interchange of two groups gives a stereoisomer.

Identifying Chirality Centers

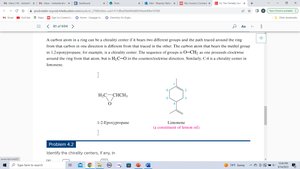

Chirality centers can be found in rings and straight-chain compounds. Carbons involved in double or triple bonds cannot be chirality centers.

Symmetry and Chirality

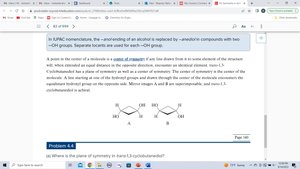

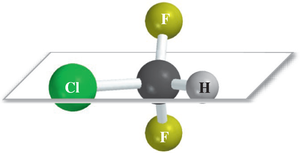

Molecules with a plane or center of symmetry are achiral. A plane of symmetry divides a molecule into two mirror-image halves. A center of symmetry means any line drawn from the center encounters identical elements at equal distances.

Absolute Configuration: R and S Notation

The absolute configuration of a chirality center is determined using the Cahn-Ingold-Prelog rules:

• Rank substituents by atomic number (highest first).

• Orient the molecule so the lowest-ranked group points away.

• If the sequence from highest to lowest priority is clockwise, the configuration is R; if counterclockwise, it is S.

Physical Properties of Enantiomers

Enantiomers have identical physical properties (melting point, boiling point, density) except for optical activity.

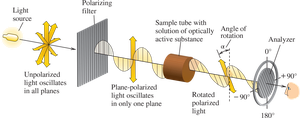

Optical Activity and Polarimetry

Optical activity is the ability of a chiral substance to rotate plane-polarized light. This property is measured using a polarimeter. Enantiomers rotate light in equal but opposite directions. Racemic mixtures (equal amounts of enantiomers) are optically inactive.

• Dextrorotatory (+, d): Rotates light clockwise.

• Levorotatory (-, l): Rotates light counterclockwise.

• Racemic Mixture: Equal quantities of enantiomers; optically inactive.

Specific Rotation

Specific rotation [α] is calculated to account for concentration and path length:

• α = observed rotation (degrees)

• c = concentration (g/mL)

• l = path length (dm)

Chirality of Conformationally Mobile Systems

Some molecules, such as cis-1,2-dibromocyclohexane, are not chiral due to rapid interconversion between mirror-image conformations.

Fischer Projections

Fischer projections are a method to represent three-dimensional stereochemistry in two dimensions. Vertical bonds point away, horizontal bonds point toward the viewer. They are useful for comparing stereoisomers and identifying enantiomers.

Diastereomers

Diastereomers are stereoisomers that are not mirror images. They can have different physical and chemical properties. Geometric isomers and compounds with multiple chirality centers often form diastereomers.

Chiral Molecules with Multiple Chirality Centers

The number of possible stereoisomers for a molecule with n chirality centers is given by:

However, the actual number may be less if some isomers are identical or achiral (meso compounds).

Meso Compounds

Meso compounds are achiral despite having asymmetric carbon atoms, due to internal symmetry.

Summary Table: Types of Stereoisomers

Additional info: The notes include questions and examples for practice, such as identifying chirality centers, assigning R/S configuration, and calculating optical purity. These are essential for mastering stereochemistry concepts.
