Chirality and Symmetry in Organic Molecules

Chirality: The Handedness of Molecules

Chirality is a fundamental concept in organic chemistry, describing objects (including molecules) that are not superposable on their mirror images. The presence or absence of certain symmetry elements determines whether a molecule is chiral or achiral.

• Chiral: Objects or molecules that are not superposable on their mirror images.

• Achiral: Objects or molecules that are superposable on their mirror images.

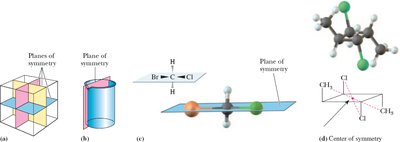

• Plane of symmetry: An imaginary plane dividing a molecule into two mirror-image halves.

• Center of symmetry: A point in a molecule where identical components are located equidistant and opposite along any axis through that point.

Key Point: The absence of a plane or center of symmetry is a strong indicator of chirality in a molecule.

Stereoisomerism: Types and Definitions

Isomers and Stereoisomers

Isomers are compounds with the same molecular formula but different structures or spatial arrangements. Stereoisomers specifically differ in the spatial orientation of their atoms.

• Constitutional isomers: Same molecular formula, different connectivity of atoms.

• Stereoisomers: Same molecular formula and connectivity, but different spatial arrangement.

• Configurational isomers: Stereoisomers that cannot be interconverted by rotation around single bonds.

• Cis-trans isomers: A type of configurational isomerism around double bonds or rings.

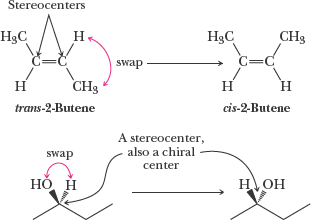

Example: Cis- and trans-2-butene are configurational isomers due to restricted rotation around the double bond.

Enantiomers and Diastereomers

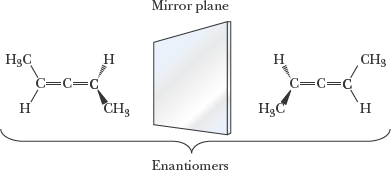

Enantiomers are stereoisomers that are nonsuperposable mirror images, while diastereomers are stereoisomers that are not mirror images of each other.

• Enantiomers: Always come in pairs; have identical physical and chemical properties in achiral environments.

• Diastereomers: Stereoisomers that are not mirror images; can have different physical and chemical properties.

Key Point: A molecule with one chiral center will have a pair of enantiomers. With two or more chiral centers, the number of possible stereoisomers is calculated as , where is the number of chiral centers.

Chiral Centers Beyond Carbon

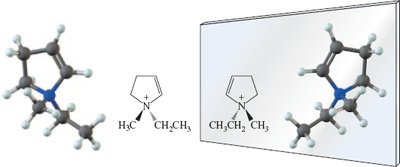

While carbon is the most common chiral center, other elements such as silicon, phosphorus, and germanium can also serve as chiral centers in organic molecules.

Conformational Isomerism

Conformational Isomers

Conformational isomers arise from rotation around single bonds. These isomers can interconvert rapidly at room temperature and are not considered configurational isomers.

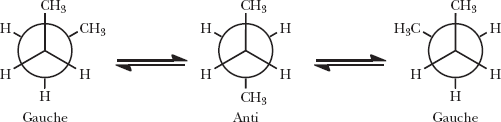

• Gauche and anti forms: Different spatial arrangements in butane due to rotation around the C–C bond.

• Atropisomers: Stereoisomers that lack a chiral center but are chiral due to restricted rotation (high energy barrier prevents interconversion).

Naming Chiral Centers: The R, S System

Cahn-Ingold-Prelog Priority Rules

The R, S system is used to specify the absolute configuration of chiral centers. The priority of substituents is assigned based on atomic number and connectivity.

• Assign priorities to the four groups attached to the chiral center based on atomic number.

• If a tie occurs, move outward from the chiral center until a difference is found.

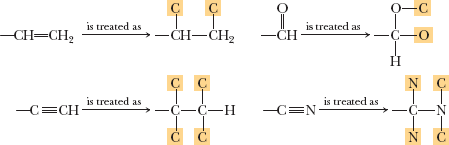

• Multiple bonds are treated as if each bond is to a separate "phantom" atom.

• Arrange the molecule so the lowest priority group is pointing away, then determine if the sequence 1-2-3 is clockwise (R) or counterclockwise (S).

Example: Assigning R or S configuration to chiral centers in various molecules.

Stereoisomers with Multiple Chiral Centers

Number of Stereoisomers

For a molecule with chiral centers, the maximum number of stereoisomers is . However, the presence of symmetry (meso compounds) can reduce this number.

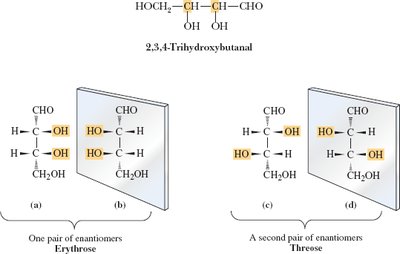

• Erythrose: (2R,3R) and (2S,3S) are enantiomers.

• Threose: (2R,3S) and (2S,3R) are enantiomers.

• Pairs such as (2R,3R) and (2R,3S) are diastereomers.

Meso Compounds

Meso compounds are achiral molecules that contain two or more chiral centers and possess an internal plane of symmetry. They reduce the total number of stereoisomers below .

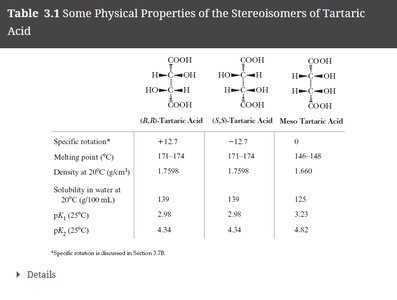

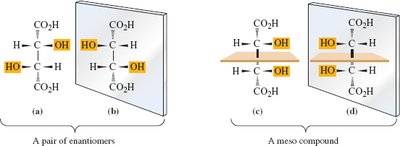

• Tartaric acid: Has three stereoisomers: a pair of enantiomers and one meso compound.

• Meso compounds are superposable on their mirror images and do not rotate plane-polarized light.

Fischer Projection Formulas

Fischer Projections

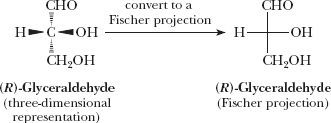

Fischer projections are two-dimensional representations of molecules, particularly useful for carbohydrates and molecules with multiple chiral centers. In these projections, horizontal lines represent bonds coming out of the plane, and vertical lines represent bonds going behind the plane.

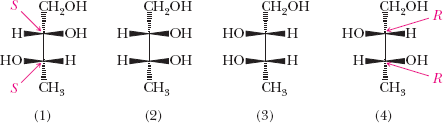

Example: Drawing Fischer projections for (2R,3R)-erythrose and other stereoisomers.

Cyclic Molecules with Multiple Chiral Centers

Disubstituted Cyclopentane and Cyclohexane Derivatives

Cyclic molecules can also possess chiral centers, leading to multiple stereoisomers. The presence of symmetry elements can result in meso compounds.

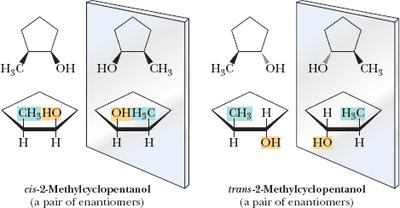

• 2-Methylcyclopentanol: Two chiral centers, four possible stereoisomers (cis and trans pairs of enantiomers).

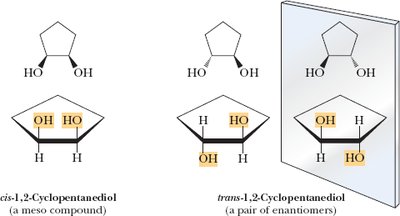

• 1,2-Cyclopentanediol: Two chiral centers, but only three stereoisomers due to the presence of a meso compound.

Disubstituted Cyclohexane Derivatives

Chair conformations are important for cyclohexane derivatives. Symmetry analysis is often performed on flat structures, but the actual molecules exist in chair conformations.

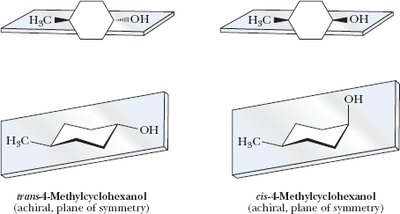

• 4-Methylcyclohexanol: Two stereocenters, but both cis and trans isomers are achiral due to a plane of symmetry.

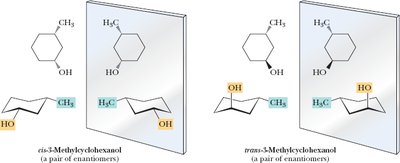

• 3-Methylcyclohexanol: Two chiral centers, four stereoisomers (cis and trans pairs of enantiomers).

• 1,2-Cyclohexanediol: Three stereoisomers: a pair of enantiomers (trans) and a meso compound (cis).

Summary Table: Stereoisomer Classification

The following flowchart (not shown here) can be used to classify isomers as constitutional, configurational, conformational, enantiomers, diastereomers, or meso compounds based on their structural features and symmetry.

Key Equations and Rules

• Number of stereoisomers: (where is the number of chiral centers, reduced by symmetry for meso compounds)

• R/S assignment: Based on Cahn-Ingold-Prelog priority rules

Additional info: The study of stereochemistry is essential for understanding the behavior of organic molecules in biological systems, as many biomolecules are chiral and their interactions are stereospecific.
