Problem 17d

Textbook Question

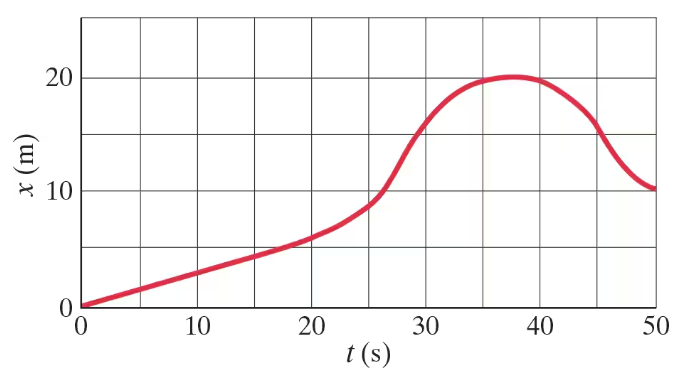

In Fig. 2–40, does the object move in one direction or in both directions during the time shown?

Verified step by step guidance

Analyze the given figure (Fig. 2–40) and identify the type of graph provided. It is likely a position vs. time graph or velocity vs. time graph. Understanding the type of graph is crucial for interpreting the motion of the object.

If the graph is a position vs. time graph, observe the slope of the graph. A positive slope indicates motion in one direction, while a negative slope indicates motion in the opposite direction. If the slope changes sign, the object moves in both directions.

If the graph is a velocity vs. time graph, examine the sign of the velocity. A positive velocity indicates motion in one direction, while a negative velocity indicates motion in the opposite direction. If the velocity changes sign, the object moves in both directions.

Determine whether the graph shows any points where the slope (in a position vs. time graph) or the velocity (in a velocity vs. time graph) crosses zero. This crossing point indicates a change in direction.

Summarize your findings based on the graph's behavior. If the slope or velocity remains consistent in sign, the object moves in one direction. If it changes sign, the object moves in both directions during the time shown.

Verified video answer for a similar problem:

This video solution was recommended by our tutors as helpful for the problem above

Play a video:

Was this helpful?

Key Concepts

Here are the essential concepts you must grasp in order to answer the question correctly.

Motion Direction

Motion direction refers to the path along which an object moves. In physics, it is essential to determine whether an object is moving in a single direction or oscillating back and forth. This can be influenced by forces acting on the object, such as gravity or friction, and can be represented graphically to analyze the object's trajectory.

Kinematics

Kinematics is the branch of mechanics that deals with the motion of objects without considering the forces that cause the motion. It involves concepts such as displacement, velocity, and acceleration, which help describe how an object moves over time. Understanding kinematics is crucial for analyzing the motion depicted in diagrams or graphs.

Graphical Representation of Motion

Graphical representation of motion involves using graphs to illustrate an object's position, velocity, or acceleration over time. These graphs can show whether an object is moving in one direction or oscillating. Analyzing the slope and shape of these graphs provides insights into the nature of the object's motion, helping to answer questions about its behavior during a specific time interval.
