Electric Fields and Forces

Introduction to Electric Phenomena

Electric phenomena arise from the presence and interaction of electric charges. This chapter introduces the concepts of electric charge, electric force, and electric field, which are foundational to understanding electricity and magnetism in physics.

Charges and Forces

Nature of Electric Charge

• Electric charge is a fundamental property of matter, existing in two types: positive and negative.

• Objects become charged by transferring electrons, typically through friction (rubbing).

• Like charges repel; opposite charges attract.

• Neutral objects contain equal amounts of positive and negative charge.

Experiments with Charges

• Rubbing a plastic rod with wool gives it a negative charge; rubbing glass with silk gives it a positive charge.

• Charged rods can attract or repel other objects depending on the type of charge.

• The force between charged objects decreases with distance and increases with the amount of charge.

Charge Model and Conservation

• Charging involves transferring charge from one object to another.

• The law of conservation of charge states that charge is neither created nor destroyed, only transferred.

• Neutral objects have equal positive and negative charges.

Insulators, Conductors, and Charge Transfer

Properties of Materials

• Conductors: Materials (like metals) where charge moves freely.

• Insulators: Materials (like glass, plastic) where charge is immobile.

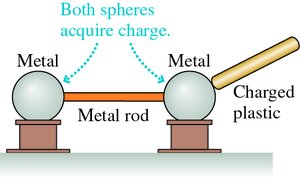

• Charge can be transferred by contact between objects, but only if at least one is a conductor.

Electrostatic Equilibrium

• In conductors, excess charge resides on the surface and distributes itself to minimize repulsion.

• Electrostatic equilibrium is reached when charges are at rest.

Polarization and Induction

Charge Polarization

• When a charged object is brought near a neutral conductor, charges within the conductor rearrange, creating a polarized state.

• This leads to an attractive force between the charged object and the neutral conductor.

Atomic Structure and Charge

Atoms and Ions

• Atoms consist of a positively charged nucleus (protons and neutrons) and negatively charged electrons.

• Objects become charged by gaining or losing electrons, not protons.

• Ionization is the process of removing or adding electrons to atoms or molecules, creating ions.

Conductors vs. Insulators at the Atomic Level

• In insulators, electrons are tightly bound to nuclei.

• In conductors, valence electrons are free to move throughout the material.

Coulomb’s Law

Force Between Point Charges

Coulomb’s Law quantifies the electric force between two point charges:

• is the magnitude of the force, and are the charges, is the distance between them, and is the electrostatic constant ( N·m²/C²).

• The force is attractive for opposite charges and repulsive for like charges.

Comparison with Gravity

• Coulomb’s law is similar in form to Newton’s law of gravitation but can be attractive or repulsive.

Electric Field Concept

Definition and Properties

• The electric field () at a point is the force per unit charge experienced by a small positive test charge placed at that point.

• The electric field is a vector; its direction is the direction of the force on a positive charge.

• Units: newtons per coulomb (N/C).

Electric Field of a Point Charge

The electric field created by a point charge at a distance is:

• For a positive charge, the field points away; for a negative charge, it points toward the charge.

Electric Field of Multiple Charges

Superposition Principle

• The net electric field at a point due to multiple charges is the vector sum of the fields produced by each charge individually.

Uniform Electric Fields and Capacitors

Parallel-Plate Capacitor

• A parallel-plate capacitor consists of two large, closely spaced conducting plates with equal and opposite charges.

• The electric field between the plates is uniform and given by:

• is the surface charge density, is the permittivity of free space ( C²/N·m²).

Electric Field Lines

Visualizing Electric Fields

• Electric field lines are drawn to represent the direction and strength of the field.

• Lines start on positive charges and end on negative charges.

• The density of lines indicates field strength; lines never cross.

Conductors in Electric Fields

Properties of Conductors

• In electrostatic equilibrium, the electric field inside a conductor is zero.

• Excess charge resides on the surface, and the field at the surface is perpendicular to it.

• Charge accumulates more densely at sharp points, leading to stronger fields there.

Forces and Torques in Electric Fields

Force on a Charge in an Electric Field

The force on a charge in an electric field is:

• This force causes acceleration according to Newton’s second law.

Electric Dipoles

• An electric dipole consists of two equal and opposite charges separated by a distance.

• In a uniform electric field, a dipole experiences no net force but does experience a torque that aligns it with the field.

Summary Table: Key Concepts

Example Problem: Coulomb’s Law

Two charges, nC and nC, are separated by 5.0 cm. Find the magnitude of the force between them.

Solution:

The force is attractive because the charges are opposite.
