Electric Charges and Forces

Introduction

Electric forces are one of the four fundamental forces of nature and play a crucial role in modern technology. This chapter introduces the basic concepts of electric charge, the nature of electric forces, and the electric field, providing a foundation for understanding electrical phenomena.

The Charge Model

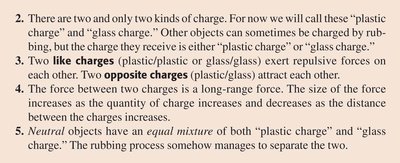

Basic Postulates of the Charge Model

• Charge is a property of matter that causes it to experience a force when placed in an electric or magnetic field.

• Frictional forces, such as rubbing, can transfer charge between objects. This process is called charging.

• There are two types of charge: positive (glass) and negative (plastic or rubber), as proposed by Benjamin Franklin.

• Like charges repel; opposite charges attract.

• Neutral objects contain equal amounts of positive and negative charge.

Properties of Electric Charges

• Friction does not create charge; it transfers charge from one object to another.

• Objects with equal positive and negative charge are neutral.

• Example: Atoms are neutral because they contain equal numbers of protons and electrons.

Conservation and Quantization of Charge

• Conservation of Charge: The total electric charge in an isolated system remains constant.

• Quantization of Charge: Charge exists in discrete packets, multiples of the elementary charge .

• Millikan's oil drop experiment demonstrated that charge is quantized.

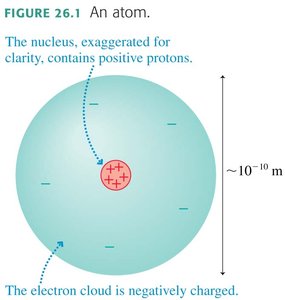

Atomic Structure and Charge

• An atom consists of a dense, positively charged nucleus (protons and neutrons) surrounded by negatively charged electrons.

• Protons and electrons have equal but opposite charges: and .

• Removing or adding electrons creates ions (charged atoms).

Insulators and Conductors

Insulators

Insulators are materials in which electrons are tightly bound to their atoms and cannot move freely. When charged by friction, the charge remains localized.

• Examples: Glass, rubber, wood.

Conductors

Conductors are materials where some electrons (conduction electrons) are free to move throughout the material. When charged, the charge quickly spreads over the surface.

• Examples: Copper, aluminum, silver.

Charge Distribution in Conductors and Insulators

• In conductors, excess charge resides on the surface and distributes evenly in static equilibrium.

• In insulators, excess charge remains where it is placed.

Charging and Discharging

Charging by Contact

• When a charged object touches a neutral conductor, electrons are transferred, leaving both objects charged.

• Charge distribution is rapid (on the order of seconds).

Charging by Induction

• A charged object brought near a conductor causes a redistribution of charges without direct contact.

• If the conductor is grounded, electrons can flow to or from the ground, leaving the conductor charged after the ground connection is removed.

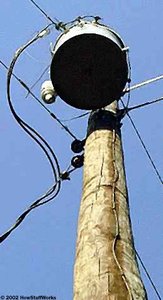

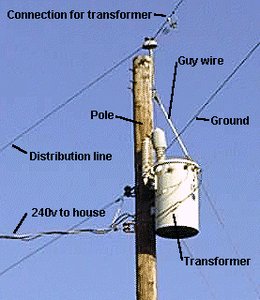

Discharging and Grounding

• Discharging occurs when a charged object is connected to a conductor (like the Earth), allowing excess charge to flow away.

• Grounding makes an object electrically neutral by providing a path for charge to move to or from the Earth.

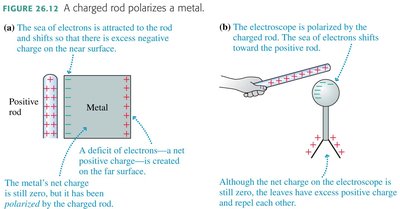

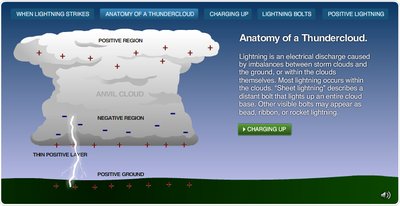

Charge Polarization

Polarization of Neutral Objects

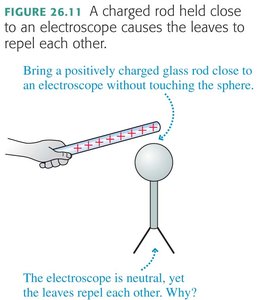

• A charged object can induce a separation of charges in a neutral object, causing attraction (polarization force).

• This explains why neutral objects are attracted to charged rods.

Coulomb’s Law

Statement of Coulomb’s Law

Coulomb’s Law quantifies the electric force between two point charges:

• The force is proportional to the product of the charges and inversely proportional to the square of the distance between them.

• The force is attractive for opposite charges and repulsive for like charges.

Mathematically,

where is the Coulomb constant.

Alternatively,

where is the permittivity of free space.

Properties of the Electric Force

• The electric force is a vector and obeys Newton’s Third Law: forces between two charges are equal in magnitude and opposite in direction.

• Superposition Principle: The net force on a charge is the vector sum of the forces exerted by all other charges.

Magnitude of Charge

• The elementary charge C.

• 1 Coulomb is a large amount of charge; typical static charges are in the microcoulomb (C) range.

• Example: A lightning bolt can transfer 15–350 C of charge.

The Electric Field

Definition and Properties

• The electric field is a region of space around a charged object where other charges experience a force.

• Defined as the force per unit charge at a point:

• The direction of is the direction of the force on a positive test charge.

• SI unit: newton per coulomb (N/C).

Electric Field Due to a Point Charge

The electric field produced by a point charge at a distance is:

• If is positive, points away from the charge; if is negative, points toward the charge.

Examples and Applications

• Calculating the electric field at various points due to one or more charges.

• Drawing electric field lines to visualize the direction and strength of the field.

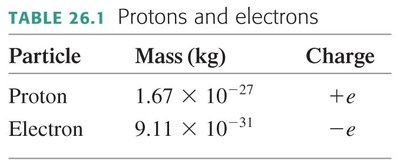

Summary Table: Properties of Protons and Electrons

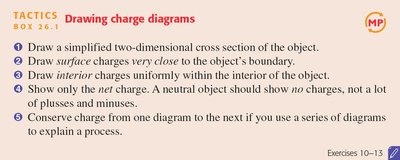

Key Concepts and Tactics

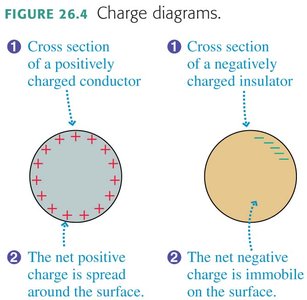

• Draw charge diagrams to represent the distribution of charge in conductors and insulators.

• Apply the superposition principle to find net forces and fields.

• Understand the difference between charging by contact, induction, and polarization.

Additional info: This guide covers the foundational concepts of electric charge, force, and field, as well as the behavior of conductors and insulators, and the principles of charge conservation and quantization. It also introduces Coulomb’s Law and the electric field, with practical examples and diagrams to reinforce understanding.
