Electromagnetic Induction and Faraday’s Law

Induced EMF

Electromagnetic induction is the process by which a changing magnetic field induces an electromotive force (emf) in a conductor. This phenomenon was first observed by Michael Faraday, who demonstrated that a current could be induced in a wire loop by changing the magnetic environment around it.

• Key Point 1: A steady magnetic field does not induce an emf; only a changing magnetic field does.

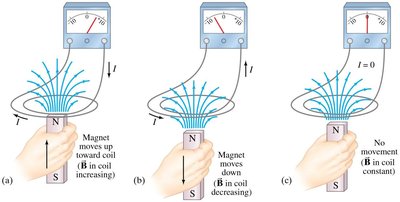

• Key Point 2: The induced current is observed when the magnetic field changes, either by moving a magnet or by changing the current in a nearby coil.

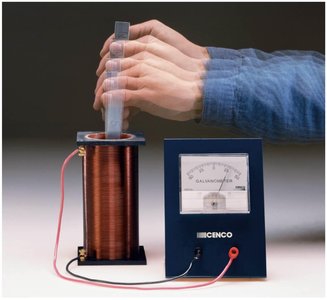

• Example: Moving a magnet through a coil induces a current, but holding the magnet steady does not.

Faraday’s Law of Induction and Lenz’s Law

Faraday’s Law quantifies the induced emf in a loop as proportional to the rate of change of magnetic flux through the loop. Lenz’s Law states that the direction of the induced emf is such that it opposes the change in magnetic flux.

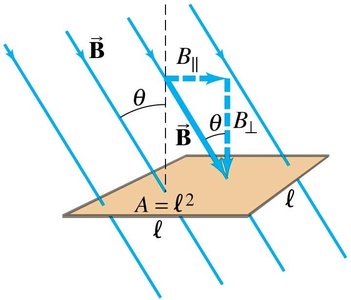

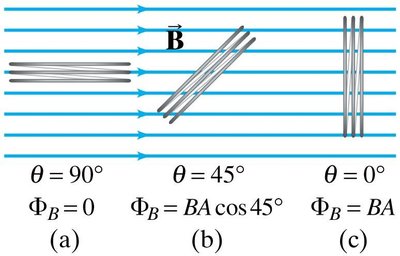

• Key Point 1: Magnetic flux (ΦB) is defined as the product of the magnetic field, the area it penetrates, and the cosine of the angle between the field and the area normal.

• Key Point 2: The unit of magnetic flux is the weber (Wb), where 1 Wb = 1 T·m2.

• Key Point 3: Faraday’s Law (single loop):

• Key Point 4: Faraday’s Law (N loops):

• Key Point 5: Lenz’s Law: The induced current creates a magnetic field that opposes the change in the original magnetic flux.

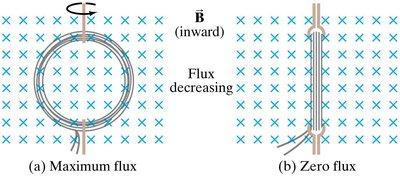

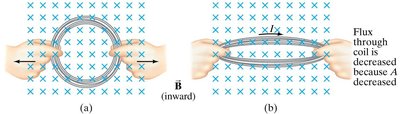

• Example: Changing the area or orientation of a loop in a magnetic field changes the magnetic flux and induces an emf.

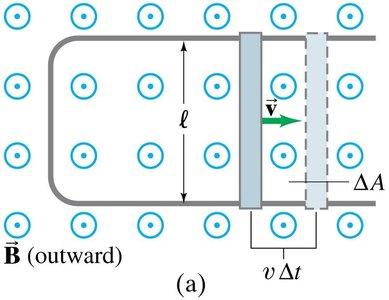

EMF Induced in a Moving Conductor

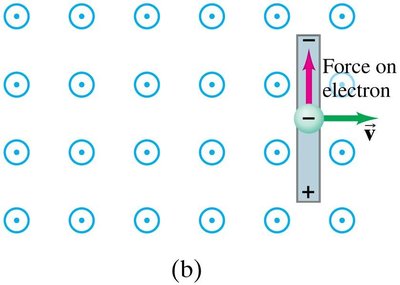

When a conductor moves through a magnetic field, an emf is induced due to the change in magnetic flux. The direction of the induced current is such that it opposes the motion (Lenz’s Law).

• Key Point 1: The induced emf in a moving conductor is given by:

• Key Point 2: The induced current creates a force that opposes the motion, requiring an external force to maintain movement.

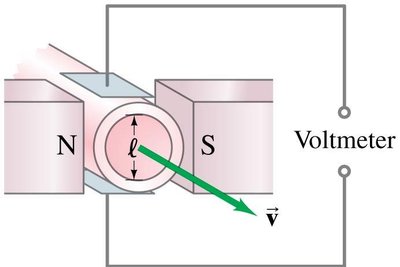

• Example: Measurement of blood velocity using induced emf.

Changing Magnetic Flux Produces an Electric Field

A changing magnetic flux induces an electric field, even in the absence of conductors. This is a generalization of Faraday’s Law and forms the basis for electromagnetic waves.

• Key Point 1: The induced electric field is non-conservative and exists wherever the magnetic flux changes.

• Example: Electromagnetic waves are produced by oscillating magnetic and electric fields.

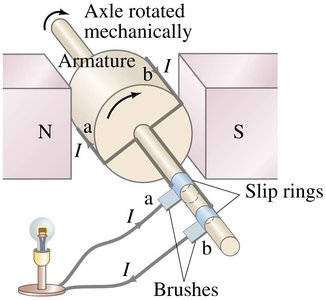

Electric Generators

Electric generators convert mechanical energy into electrical energy by rotating a coil in a magnetic field. AC generators use slip rings, while DC generators use a split-ring commutator.

• Key Point 1: The induced emf in a generator is sinusoidal and depends on the number of turns and area of the coil.

• Key Point 2: AC generators produce alternating current; DC generators produce direct current.

• Example: Hydroelectric and steam turbines drive generators in power plants.

Back EMF, Counter Torque, and Eddy Currents

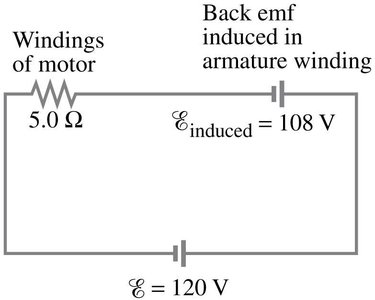

Back emf is the emf induced in a motor’s armature that opposes the applied voltage, creating a drag torque. Eddy currents are induced currents in bulk conductors that can cause significant energy losses and slow moving conductors.

• Key Point 1: Back emf limits the acceleration of electric motors.

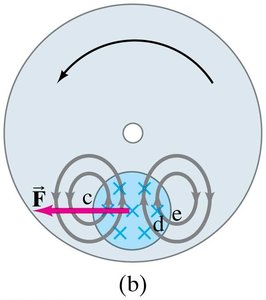

• Key Point 2: Eddy currents are used in electromagnetic braking and can be minimized by using laminated cores.

• Example: Counter torque in generators requires increased external torque to maintain rotation.

Transformers and Transmission of Power

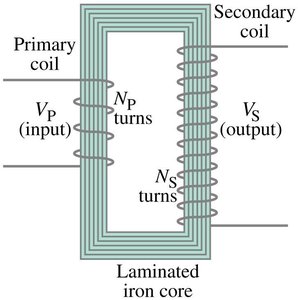

Transformers use electromagnetic induction to change the voltage of alternating current. They consist of primary and secondary coils linked by an iron core. The ratio of voltages is equal to the ratio of turns in each coil.

• Key Point 1: Step-up transformers increase voltage; step-down transformers decrease voltage.

• Key Point 2: Energy conservation requires the ratio of currents to be the inverse of the ratio of turns.

• Key Point 3: Transformers only work with AC, not DC.

• Example: Power transmission lines use transformers to minimize energy loss.

Information Storage: Magnetic and Semiconductor Devices

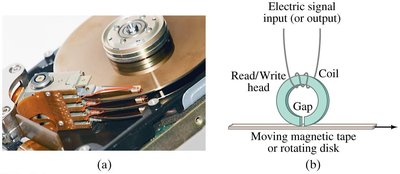

Information can be stored magnetically (tape, hard drives) or electronically (RAM, semiconductor chips). Magnetic storage uses ferromagnetic coatings, while RAM stores binary bits as electric charges.

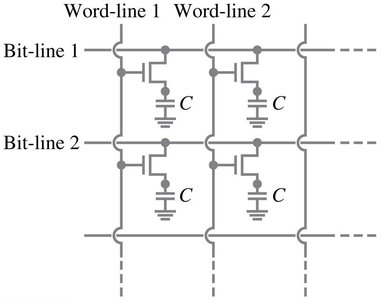

• Key Point 1: DRAM uses MOSFETs to store bits; it is volatile and loses information when power is off.

• Key Point 2: Nonvolatile memory retains information without power, using floating gate transistors.

• Example: Hard drives and flash memory are common storage devices.

Applications of Induction: Microphone, Seismograph, GFCI

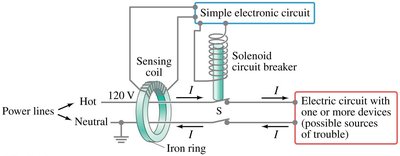

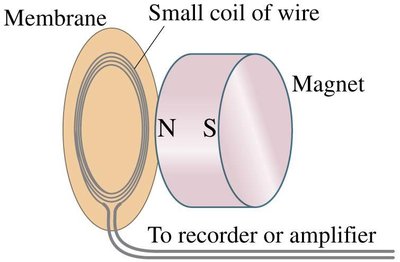

Induction is used in various devices, such as microphones (vibrating membrane induces emf), seismographs (records earth movement), and ground fault circuit interrupters (GFCI) for electrical safety.

• Key Point 1: Microphones convert sound vibrations into electrical signals.

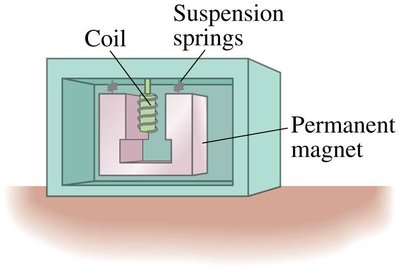

• Key Point 2: Seismographs detect and record seismic activity using induction.

• Key Point 3: GFCIs quickly interrupt circuits to prevent electrocution.

• Example: Induction microphones are used in audio recording.

Inductance

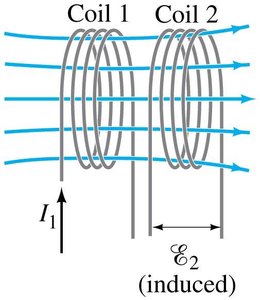

Inductance is the property of a circuit that opposes changes in current. Mutual inductance occurs when a changing current in one coil induces an emf in another coil. Self-inductance is the emf induced in the same coil.

• Key Point 1: Mutual inductance equations:

• Key Point 2: Self-inductance equation:

• Key Point 3: Unit of inductance is the henry (H).

• Example: Transformers are practical examples of mutual inductance.

Energy Stored in a Magnetic Field

Energy can be stored in a magnetic field, particularly in inductors. The energy density of a magnetic field is given by:

• Key Point 1: Energy density equation:

• Example: Inductors in circuits store energy in their magnetic fields.

LR Circuit

An LR circuit consists of an inductor and a resistor. When connected to a voltage source, the current increases gradually due to the inductor’s opposition to change. When disconnected, the current decays exponentially.

• Key Point 1: Current growth equation:

• Key Point 2: Time constant:

• Key Point 3: Current decay equation:

• Example: The voltage drop shifts from the inductor to the resistor over time.

AC Circuits and Reactance

In AC circuits, resistors, capacitors, and inductors exhibit different phase relationships between current and voltage. Reactance is the effective resistance of capacitors and inductors, and depends on frequency.

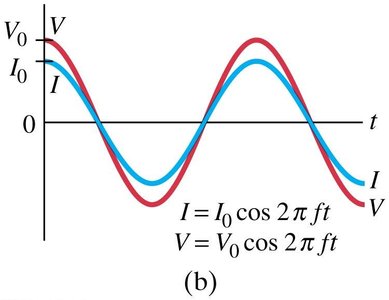

• Key Point 1: In resistors, current and voltage are in phase.

• Key Point 2: In inductors, current lags voltage by 90°.

• Key Point 3: In capacitors, current leads voltage by 90°.

• Key Point 4: Reactance equations: Inductor: Capacitor:

• Example: AC circuits are used in household power systems.

LRC Series AC Circuit

The LRC series circuit contains a resistor, inductor, and capacitor. The voltages across each component are not in phase, so phasors are used to analyze the circuit. The impedance determines the effective resistance.

• Key Point 1: Impedance equation:

• Key Point 2: The current is the same throughout the circuit.

• Example: Resonance occurs when , maximizing current.

Resonance in AC Circuits

Resonance occurs in an LRC circuit when the inductive and capacitive reactances are equal. The resonant frequency is given by:

• Key Point 1: Resonant frequency equation:

• Key Point 2: At resonance, the rms current is maximized.

• Example: Radio receivers use resonance to select desired frequencies.

Summary Table: Key Formulas and Concepts
