Equilibrium and Elasticity

Introduction

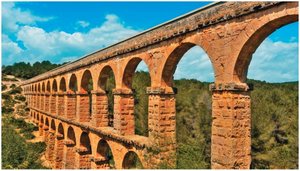

Equilibrium and elasticity are fundamental concepts in physics, especially in the study of mechanics and materials. Equilibrium ensures that structures remain stable and do not accelerate, while elasticity describes how materials deform under applied forces. Real-world structures, such as Roman aqueducts, utilize these principles to maintain stability and functionality.

Conditions for Equilibrium

For an object or structure to be in static equilibrium, two essential conditions must be satisfied:

• First Condition (Force Equilibrium): The vector sum of all external forces acting on the object must be zero. This ensures the object does not accelerate.

• Second Condition (Torque Equilibrium): The sum of all external torques about any point must be zero. This ensures the object does not rotate.

Mathematically, these conditions are expressed as:

Examples of Equilibrium Conditions

Understanding equilibrium involves analyzing both force and torque. The following examples illustrate different scenarios:

• Static Equilibrium: Both force and torque conditions are satisfied; the object remains at rest without tendency to move or rotate.

• Force Equilibrium Only: The object does not accelerate but may rotate if torque equilibrium is not satisfied.

• Torque Equilibrium Only: The object does not rotate but may accelerate if force equilibrium is not satisfied.

Center of Gravity

Definition and Importance

The center of gravity is the point at which the entire weight of an object can be considered to act. For most practical purposes, especially when gravity is uniform, the center of gravity coincides with the center of mass.

Applications and Examples

• In tall structures, such as the Petronas Towers, the center of gravity is only slightly below the center of mass due to minor variations in gravity with altitude.

Suspension and Support

• When an object is suspended at a single point, its center of gravity lies directly above or below the suspension point.

• For objects supported at multiple points, the center of gravity must be within the area bounded by the supports for equilibrium.

Stability and Equilibrium

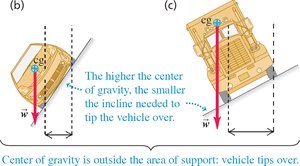

• If the center of gravity lies outside the area of support, the object is not in equilibrium and may tip over.

Problem-Solving Strategy for Static Equilibrium

Solving equilibrium problems involves systematic steps:

1. Sketch the physical situation and identify the object in equilibrium.

2. Draw a free-body diagram showing all forces and their points of application.

3. Choose coordinate axes and specify their direction, including positive rotation for torques.

4. Choose a reference point for torque calculations.

5. Write equations for equilibrium: , , .

6. Check results by computing torques with respect to different reference points.

Additional info: These steps ensure all unknowns are accounted for and the solution is consistent.

Strain, Stress, and Elastic Moduli

Types of Stress

Stress is the force per unit area applied to an object, and strain is the resulting fractional change in the object's dimensions. There are three main types of stress:

• Tensile Stress: Stretching forces applied at the ends of an object.

• Bulk Stress: Forces applied uniformly from all sides, such as pressure in a fluid.

• Shear Stress: Forces applied parallel to the surface, causing deformation.

Stress and Strain

Stress is defined as , where is the force and is the area. Strain is the fractional change in length or shape. Elastic deformation occurs when the object returns to its original shape after the force is removed.

Tensile Stress and Strain

When an object is subjected to tension, it elongates. The net force is zero, but the object deforms. The formulas are:

• Tensile Stress:

• Tensile Strain:

Young's Modulus

Young's modulus () quantifies the stiffness of a material under tension. For small stresses, stress and strain are proportional:

Compressive Stress and Strain

Compressive stress occurs when an object is squeezed. The formulas are similar to tensile stress, but represents contraction:

• Compressive Stress:

• Compressive Strain:

Compression and Tension in Beams

Beams supported at both ends experience both compression and tension. The top of the beam is compressed, while the bottom is under tension.

Bulk Stress and Strain

Bulk stress is caused by pressure applied uniformly to all sides of an object. The bulk modulus () is defined as:

Example: Bulk Stress on Anglerfish

Deep-sea creatures like anglerfish withstand high bulk stress due to their lack of internal air spaces, allowing them to survive at great depths.

Shear Stress and Strain

Shear stress is caused by forces acting parallel to a surface. The shear modulus () is defined as:

Compressibility

The reciprocal of the bulk modulus is called compressibility ():

Additional info: Compressibility measures how easily a material can be compressed under pressure.

Elasticity and Plasticity

Hooke's Law and Elastic Hysteresis

Hooke's law states that stress and strain are proportional within the elastic limit. Beyond this limit, materials exhibit elastic hysteresis, where the path of deformation differs for loading and unloading.

Plastic Deformation and Fracture

Materials such as metals exhibit plastic behavior beyond the elastic limit, resulting in permanent deformation. The stress-strain diagram shows the proportional limit, elastic limit, plastic deformation, and fracture point.

Approximate Breaking Stresses

The breaking stress is the value required to cause fracture in a material. Typical values are provided in reference tables for various materials.

Additional info: Understanding breaking stress is crucial for material selection in engineering and construction.
