Q1. Multiple Choice: Work, Energy, and Forces

Background

Topic: Basic concepts in work, energy, and forces. These questions test your understanding of physical units, vector operations, potential energy, and the work done by forces in different scenarios.

Key Terms and Formulas:

• Watt (W): The SI unit of power, not work or energy. Work and energy are measured in Joules (J).

• Dot Product: For vectors and , the dot product is .

• Potential Energy: Can be negative depending on the reference point chosen.

• Normal Force: Acts perpendicular to the surface; work done by it is often zero if there is no displacement in its direction.

• Work by Gravity: , where is the angle between force and displacement.

Step-by-Step Guidance

1. Review the definition of a Watt and recall which physical quantities it is used to measure.

2. Recall the formula for the dot product of two vectors and match it to the options given.

3. Think about how potential energy is defined and whether it can be negative based on your choice of reference point.

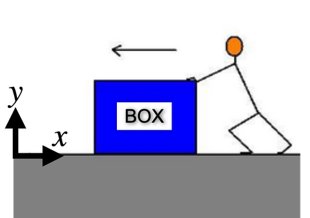

4. Consider the direction of the normal force relative to the displacement of the box to determine the work done by the normal force.

5. For the elevator question, analyze the direction of gravity relative to the elevator's motion to determine the sign of the work done by gravity.

Try solving on your own before revealing the answer!

Q2. Basketball Thrown Upward: Conservation of Energy

Background

Topic: Conservation of Mechanical Energy. This problem involves using energy principles to analyze the motion of a basketball thrown vertically upward.

Key Terms and Formulas:

• Kinetic Energy (KE):

• Gravitational Potential Energy (PE):

• Conservation of Mechanical Energy:

Step-by-Step Guidance

1. Write the conservation of energy equation for the ball from the moment it leaves the player's hand to its maximum height.

2. At maximum height, the ball's velocity is zero, so its kinetic energy is zero.

3. Set the initial kinetic and potential energies equal to the final potential energy at maximum height.

4. Plug in the given values: mass, initial speed, initial height, and gravitational acceleration.

5. Rearrange the equation to solve for the maximum height, but stop before calculating the final value.

Try solving on your own before revealing the answer!

Q3. Freight Car and Spring: Energy Conservation

Background

Topic: Conservation of Energy with Springs. This problem involves a freight car compressing a spring and asks about energy transformations.

Key Terms and Formulas:

• Spring Potential Energy:

• Kinetic Energy:

• Energy Conservation: Initial kinetic energy is converted into spring potential energy.

Step-by-Step Guidance

1. Calculate the potential energy stored in the spring at maximum compression using the given spring constant and compression distance.

2. Set the initial kinetic energy of the car equal to the spring's potential energy at maximum compression.

3. Use the kinetic energy formula to relate the car's mass and initial speed to its energy.

4. Rearrange the equation to solve for the car's initial speed, but do not compute the final value yet.

Try solving on your own before revealing the answer!

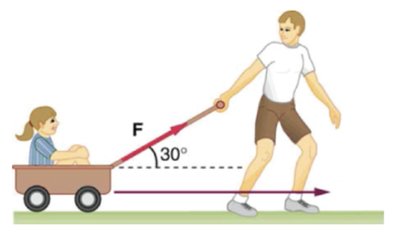

Q4. Work and Power: Pulling a Wagon

Background

Topic: Work and Power. This problem involves calculating the work done by a force at an angle and the power output over a given time.

Key Terms and Formulas:

• Work:

• Power:

• Unit Conversions: 1 cm = 0.01 m, 1 min = 60 s

Step-by-Step Guidance

1. Convert the distance pulled from centimeters to meters.

2. Calculate the work done using the force, distance, and angle provided.

3. Convert the time from minutes to seconds for the power calculation.

4. Set up the formula for power using the work calculated and the time interval, but stop before the final calculation.

Try solving on your own before revealing the answer!

Q5. Ice Skaters: Conservation of Momentum

Background

Topic: Conservation of Momentum in Collisions. This problem involves a perfectly inelastic collision between two skaters.

Key Terms and Formulas:

• Momentum:

• Conservation of Momentum:

• Perfectly Inelastic Collision: Objects stick together after collision.

Step-by-Step Guidance

1. Draw a before-and-after diagram showing the skaters' velocities and positions.

2. Identify the type of collision (perfectly inelastic) and what that means for the final state.

3. Calculate the initial momentum of the moving skater using .

4. Set up the conservation of momentum equation to solve for the final velocity of both skaters together, but do not compute the final value yet.

Try solving on your own before revealing the answer!

Q6. Car Crash: Impulse and Momentum

Background

Topic: Impulse and Change in Momentum. This problem involves calculating the change in momentum, impulse, and average force during a collision.

Key Terms and Formulas:

• Change in Momentum:

• Impulse:

• Average Force:

Step-by-Step Guidance

1. Calculate the initial and final velocities of the driver (remember the driver comes to rest).

2. Find the change in momentum using the mass and velocity change.

3. Recognize that the impulse delivered by the seatbelt equals the change in momentum.

4. Set up the formula for average force using the impulse and the time interval, but stop before the final calculation.

Try solving on your own before revealing the answer!
