Q1. Multiple Choice: Work, Energy, Vectors, and Forces

Background

Topic: Fundamental concepts in mechanics, including units, vector operations, potential energy, and work done by forces.

Key Terms and Concepts:

• Watt (W): The SI unit of power, not work or energy. Work and energy are measured in Joules (J).

• Dot Product: For vectors and , the dot product is .

• Potential Energy: Can be negative depending on the reference point chosen.

• Normal Force: Acts perpendicular to the surface; work done by it is often zero if there is no displacement in its direction.

• Work by Gravity: When an object moves upward, gravity does negative work.

Step-by-Step Guidance

1. Review the definition of a Watt and recall which physical quantities it measures.

2. Recall the formula for the dot product of two vectors and match it to the options given.

3. Think about how potential energy is defined and whether it can be negative based on your choice of zero point.

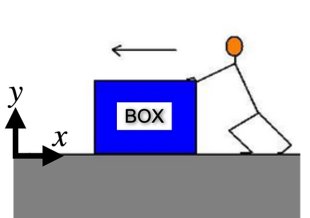

4. Consider the direction of the normal force relative to the displacement of the box to determine the work done.

5. Analyze the direction of gravity relative to the elevator's motion to decide if the work is positive, negative, or zero.

Try solving on your own before revealing the answer!

Q2. Basketball Thrown Upward: Conservation of Energy

Background

Topic: Conservation of mechanical energy, gravitational potential energy, and work done by gravity.

This problem involves using energy principles to analyze the motion of a basketball thrown vertically upward.

Key Terms and Formulas

• Mechanical Energy Conservation:

• Kinetic Energy:

• Gravitational Potential Energy: (with measured from the ground)

• Work by Gravity:

Step-by-Step Guidance

1. Write the conservation of energy equation for the ball at the moment it leaves the player's hand and at its maximum height.

2. Set the initial kinetic and potential energies equal to the final kinetic and potential energies at the maximum height (where ).

3. Express the unknown maximum height in terms of the given quantities and solve for it algebraically.

4. For gravitational potential energy at maximum height, use with found in the previous step.

5. To find the work done by gravity, use .

Try solving on your own before revealing the answer!

Q3. Freight Car and Spring: Energy Conservation

Background

Topic: Conservation of energy, elastic potential energy, and kinetic energy.

This problem involves a freight car compressing a spring and stopping, illustrating the conversion of kinetic energy to elastic potential energy.

Key Terms and Formulas

• Elastic Potential Energy:

• Kinetic Energy:

• Energy Conservation: (if no friction)

Step-by-Step Guidance

1. Calculate the elastic potential energy stored in the spring at maximum compression using the given spring constant and compression distance.

2. Set the car's initial kinetic energy equal to the spring's potential energy at maximum compression to find the initial kinetic energy.

3. Rearrange the kinetic energy formula to solve for the car's initial speed .

4. Plug in the known values and simplify, but stop before the final calculation.

Try solving on your own before revealing the answer!

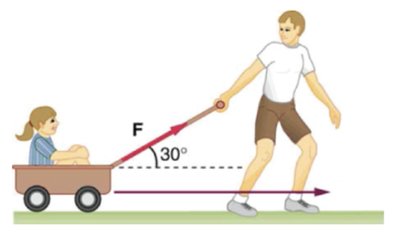

Q4. Work and Power: Pulling a Wagon

Background

Topic: Work done by a force at an angle, and power as the rate of doing work.

This problem involves calculating the work done by a force applied at an angle and the power output over a given time.

Key Terms and Formulas

• Work:

• Power:

• Unit Conversions: 1 cm = 0.01 m, 1 min = 60 s

Step-by-Step Guidance

1. Convert the distance pulled from centimeters to meters.

2. Calculate the work done using the formula with the given force, distance, and angle.

3. Convert the time from minutes to seconds for the power calculation.

4. Set up the power formula using your previous result for work and the converted time.

Try solving on your own before revealing the answer!

Q5. Collisions and Conservation of Momentum: Ice Skaters

Background

Topic: Conservation of momentum, inelastic collisions, and calculation of final velocities.

This problem involves two skaters colliding and moving together, which is a classic example of a perfectly inelastic collision.

Key Terms and Formulas

• Momentum:

• Conservation of Momentum:

• Inelastic Collision: Objects stick together after collision.

Step-by-Step Guidance

1. Draw a before-and-after diagram showing the skaters' positions and velocities, and label the masses and speeds.

2. Calculate the initial momentum of the moving skater using .

3. Set up the conservation of momentum equation for the system before and after the collision.

4. Rearrange the equation to solve for the final velocity of both skaters together.

Try solving on your own before revealing the answer!

Q6. Impulse and Momentum: Car Crash and Seatbelt

Background

Topic: Impulse-momentum theorem, change in momentum, and average force during a collision.

This problem involves calculating the change in momentum, impulse, and average force exerted by a seatbelt during a car crash.

Key Terms and Formulas

• Change in Momentum:

• Impulse:

• Average Force:

Step-by-Step Guidance

1. Calculate the initial and final velocities of the driver and use them to find the change in momentum.

2. Recognize that the impulse delivered by the seatbelt equals the change in momentum.

3. Set up the formula for average force using the impulse and the time interval of the collision.

4. Plug in the known values and simplify, but stop before the final calculation.

Try solving on your own before revealing the answer!
