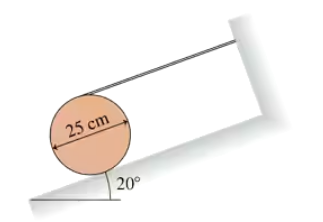

FIGURE P12.63 shows a 15 kg cylinder held at rest on a 20° slope. What is the magnitude of the static friction force?

A 200 kg, 10 m-long beam is held at equilibrium by a hinge on the floor and a force you apply on it via a light rope connected to its edge, as shown. The beam is held at 53° above the horizontal, and your rope makes an angle of 30° with it. Calculate the angle that the Net Force of the hinge makes with the horizontal (use +/– for above/below +x, and use g=10 m/s².)

A 15,000-N crane pivots around a friction-free axle at its base and is supported by a cable making a 25° angle with the crane (Fig. E11.18). The crane is 16 m long and is not uniform, its center of gravity being 7.0 m from the axle as measured along the crane. The cable is attached 3.0 m from the upper end of the crane. When the crane is raised to 55° above the horizontal holding an 11,000-N pallet of bricks by a 2.2-m, very light cord, find the tension in the cable. Start with a free-body diagram of the crane.

A refrigerator is approximately a uniform rectangular solid 1.9 m tall, 1.0 m wide, and 0.75 m deep. If it sits upright on a truck with its 1.0-m dimension in the direction of travel, and if the refrigerator cannot slide on the truck, how rapidly can the truck accelerate without tipping the refrigerator over? [Hint: The normal force would act at one corner.]

The subterranean tension ring that surrounds the dome in Fig. 12–39 exerts the balancing horizontal force on the abutments for the dome and is 36-sided, so each segment makes a 10° angle with the adjacent one (Fig. 12–83). Calculate the tension F that must exist in each segment so that the required force of 4.2 x 10⁵ N can be exerted at each corner (Example 12–14).

A uniform 95-kg flagpole of length 8.4 m is being erected by pulling on a rope attached 2/3 of the way to the top (Fig. 12–94). When the pole is inclined at 35° and the rope makes an angle with the ground of 18°, what is the tension in the rope?

The cm of a 95,000-kg train locomotive starts across a 260-m-long bridge at time t = 0. The bridge is a uniform beam of mass 23,000 kg and the train travels at a constant 80.0 km/h. What are the magnitudes of the vertical forces, F_A(t) and F_B(t), on the two end supports, written as a function of time during the train’s passage?
